SA56004AD,118 - NXP

Description: Board Mount Temperature Sensors I2C LOC +/- 2OC AND

Download SA56004AD,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

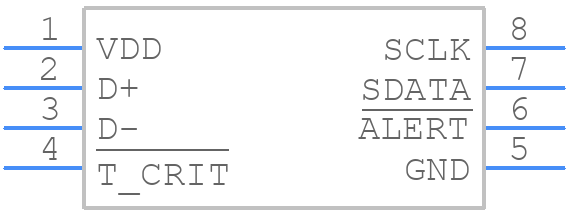

SA56004AD,118 - NXP - PCB symbol
click to zoom
PCB Footprints
SA56004AD,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1_2022
click to zoom
3D Models
SA56004AD,118 - NXP - 3D model - Small Outline Packages - SOT96-1_2022
click to zoom

SA56004AD,118 Details

  • Manufacturer Part Number:

    SA56004AD,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.35 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

SA56004AD,118 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and avoid vias under the device.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and ensure good grounding. Also, use a common-mode choke or ferrite bead on the input lines to reduce EMI.
  • The SA56004AD can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management to prevent overheating.
  • Yes, but ensure the device is properly secured to the PCB using a suitable adhesive or mechanical fastening. Also, consider using a vibration-dampening material or potting compound to reduce stress on the device.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA56004AD,118 Overview

Use the download button to access the SA56004AD,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA560, or try a keyword search, such as Temperature Sensors
