Part Image

SA612AD/01,118 - NXP

Description: RF Mixer DOUBLE BAL MIXER/OSCILLATOR

Download SA612AD/01,118 Model

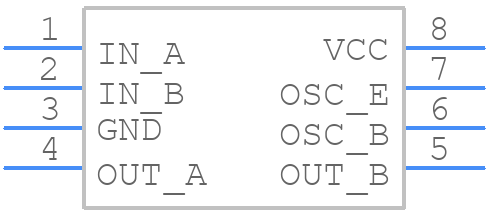

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SA612AD/01,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - NT3H2111W0FT1X
click to zoom
3D Models
SA612AD/01,118 - NXP  - 3D model - Small Outline Packages - NT3H2111W0FT1X
click to zoom

SA612AD/01,118 Details

  • Manufacturer Part Number:

    SA612AD/01,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SA612AD/01,118 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SA612AD is 4.5V to 9V, with a typical voltage of 5V.
  • To optimize the SA612AD for low noise performance, ensure that the device is operated at a stable temperature, use a low-noise power supply, and minimize the input signal amplitude. Additionally, use a high-quality PCB layout and decoupling capacitors to reduce noise coupling.
  • The maximum input signal amplitude that the SA612AD can handle is approximately 1.5Vrms (2.1Vp-p) at a frequency of 100 kHz.
  • To ensure the SA612AD is properly biased, connect the VCC pin to a stable voltage source, and connect the VEE pin to a stable voltage source or ground. Ensure that the voltage difference between VCC and VEE is within the recommended operating range.
  • The typical current consumption of the SA612AD is approximately 2.5mA at a supply voltage of 5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA612AD/01,118 Overview

Use the download button to access the SA612AD/01,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA612, or try a keyword search, such as Other Telecom ICs
