SA616BS,115 - NXP

Description: RF Mixer Low-voltage HP mixer FM IF system

Download SA616BS,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

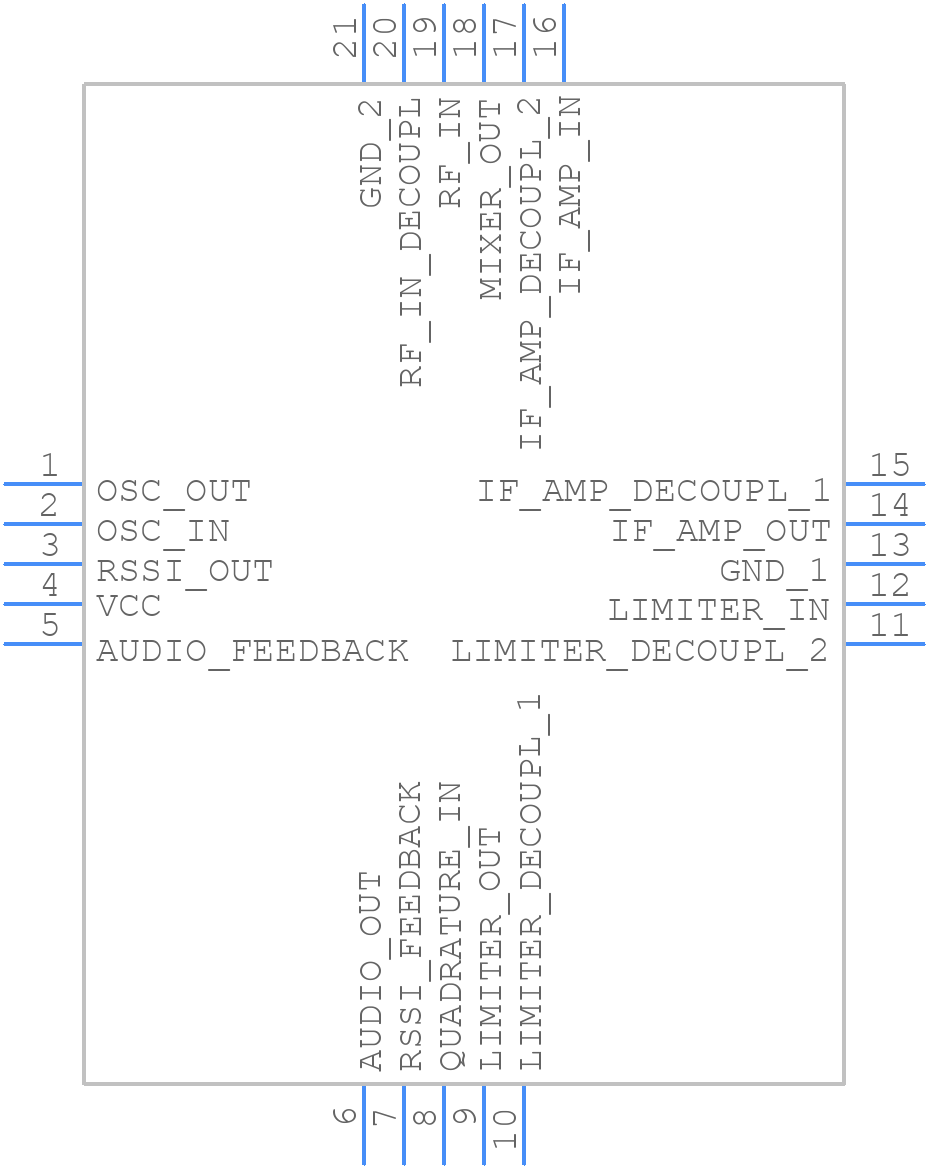

SA616BS,115 - NXP - PCB symbol
click to zoom
PCB Footprints
SA616BS,115 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SA616BS,115
click to zoom
3D Models
SA616BS,115 - NXP - 3D model - Quad Flat No-Lead - SA616BS,115
click to zoom

SA616BS,115 Details

  • Manufacturer Part Number:

    SA616BS,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT917 -1, HVQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT917-1

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

SA616BS,115 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for SA616BS,115 is 4.5V to 5.5V, with a typical voltage of 5V.
  • To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the device, and to keep the ambient temperature below 70°C.
  • The maximum input signal amplitude that SA616BS,115 can handle is 1.5V peak-to-peak, with a maximum input impedance of 1kΩ.
  • The gain of SA616BS,115 can be configured by connecting an external resistor (Rg) between pins 1 and 8, with a recommended value of 1kΩ to 10kΩ.
  • The typical current consumption of SA616BS,115 is 10mA, with a maximum current consumption of 15mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA616BS,115 Overview

Use the download button to access the SA616BS,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA616, or try a keyword search, such as Other Consumer ICs
