SA636DK/01,112 - NXP

Description: UpDown Conv Mixer 3V 500MHz 20PSSOP Tube NXP SA636DK/01,112, Up-Down Converter & Mixer Circuit 0.6MHz Gain=14 dB 2.7 → 5.5 V 20-Pin SSOP

Download SA636DK/01,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

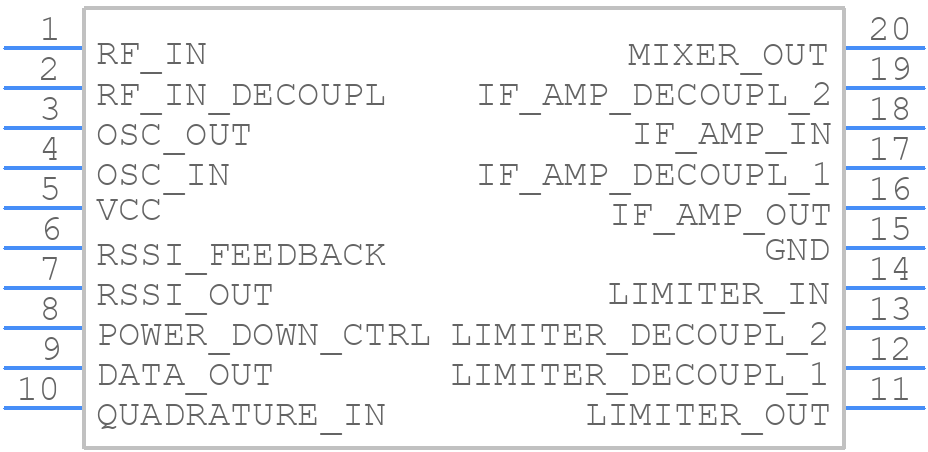

SA636DK/01,112 - NXP - PCB symbol
click to zoom
PCB Footprints
SA636DK/01,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - NXP SSOP20 SOT266-1
click to zoom
3D Models
SA636DK/01,112 - NXP - 3D model - Small Outline Packages - NXP SSOP20 SOT266-1
click to zoom

SA636DK/01,112 Details

  • Manufacturer Part Number:

    SA636DK/01,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP2

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT266-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

SA636DK/01,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the SA636DK/01,112 is 2.7V to 5.5V.
  • To ensure proper power-on, connect the VCC pin to a stable voltage source, and make sure the voltage ramp-up time is less than 1ms.
  • The BYPASS pin is used to connect an external capacitor to improve the power supply rejection ratio (PSRR). Connect a 10nF to 100nF capacitor between the BYPASS pin and the VCC pin.
  • The gain of the SA636DK/01,112 can be configured by connecting external resistors between the GAIN pin and the VCC or GND pins. Refer to the datasheet for specific gain settings and resistor values.
  • The maximum input signal amplitude that the SA636DK/01,112 can handle is 2.5Vpp differential or 1.25Vpp single-ended.
