SAB80535-N-40/85 - Infineon

SAB80535-N-40/85 Details

• Manufacturer Part Number:

  SAB80535-N-40/85

• Part Life Cycle Code:

  Obsolete

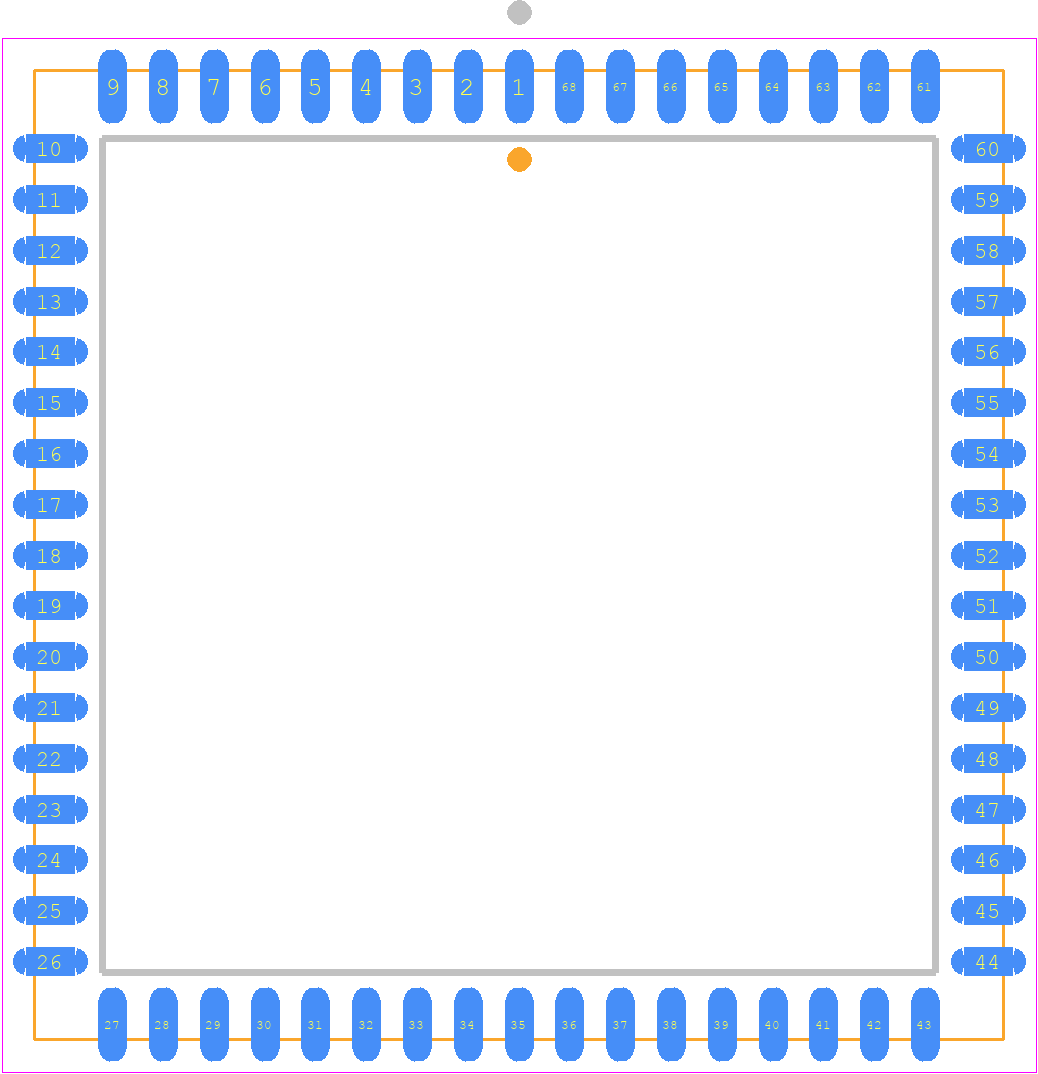

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, LCC-68

• Pin Count:

  68

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  16

• Bit Size:

  8

• CPU Family:

  8051

• Clock Frequency-Max:

  56 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J68

• JESD-609 Code:

  e0

• Length:

  24.21 mm

• Number of I/O Lines:

  56

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• Seated Height-Max:

  5.08 mm

• Speed:

  12 MHz

• Supply Current-Max:

  230 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  NMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  24.21 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
