SAFEA1G58KA0F00R15 - Murata Electronics

Description: Signal Conditioning

Download SAFEA1G58KA0F00R15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

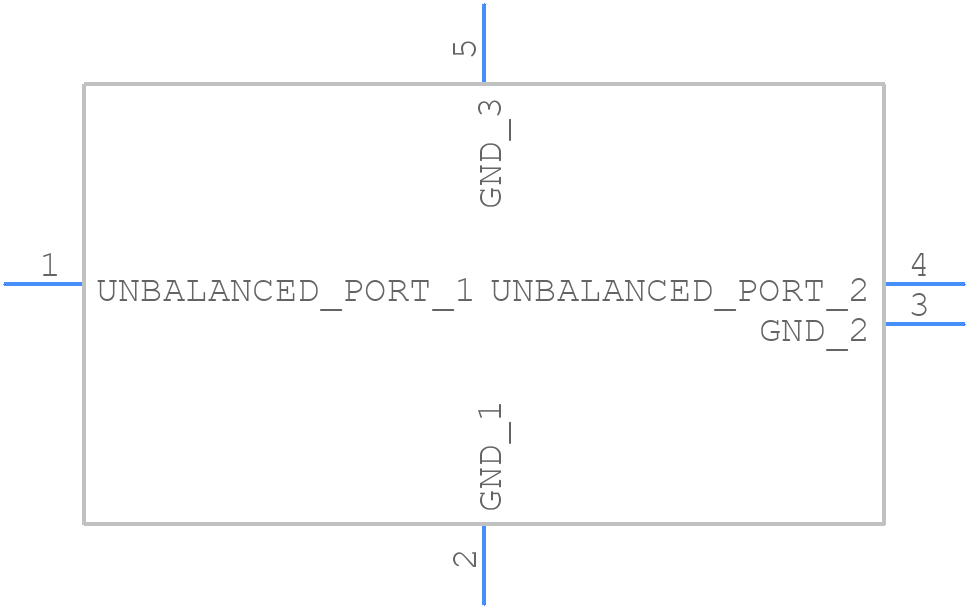

Symbol
SAFEA1G58KA0F00R15 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SAFEA1G58KA0F00R15 - Murata Electronics PCB footprint - Other - Other - SAFEA1G58KA0F00R15-3
click to zoom
3D Models
SAFEA1G58KA0F00R15 - Murata Electronics - 3D model - Other - SAFEA1G58KA0F00R15-3
click to zoom

SAFEA1G58KA0F00R15 Details

  • Manufacturer Part Number:

    SAFEA1G58KA0F00R15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    ROHS COMPLIANT PACKAGE-5

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Additional Feature:

    TAPE AND REEL

  • Center or Cutoff Frequency (fo/fc):

    1575.42 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    0.5 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.8 dB

  • Length:

    1.35 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Impedance:

    50 OHM Ω

  • Width:

    1.05 mm

SAFEA1G58KA0F00R15 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SAFEA1G58KA0F00R15 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal assembly and reliability.
  • The SAFEA1G58KA0F00R15 is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes storing the devices in a dry environment, using a dry pack or nitrogen-filled packaging, and following proper baking procedures before assembly.
  • The maximum reflow temperature for the SAFEA1G58KA0F00R15 is 260°C, with a recommended reflow profile that includes a peak temperature of 250°C for 10-30 seconds.
  • The SAFEA1G58KA0F00R15 is designed to withstand moderate vibration levels, but it's recommended to consult with Murata's application engineers to determine the suitability of the device for high-vibration environments and to discuss potential custom testing and validation.
  • The SAFEA1G58KA0F00R15 should be cleaned using a mild detergent and deionized water, followed by a thorough rinse and drying process. Avoid using harsh chemicals, ultrasonic cleaning, or high-pressure washing, as these can damage the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SAFEA1G58KA0F00R15 Overview

Use the download button to access the SAFEA1G58KA0F00R15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SAFEA, or try a keyword search, such as SAW Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
