SAFFB1G84AB0F0AR1X - Murata Electronics

Description: SAW Single Filter for Band3 / Unbalanced / 5pin /1109 -20 to +85 C,10M ohm

Download SAFFB1G84AB0F0AR1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

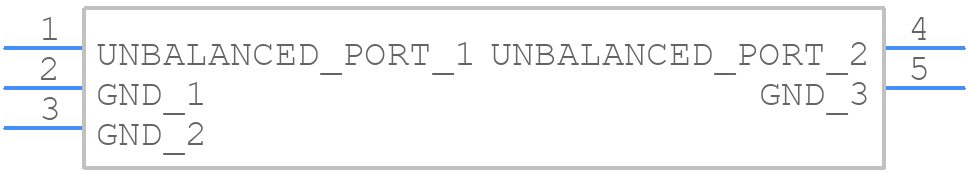

SAFFB1G84AB0F0AR1X - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SAFFB1G84AB0F0AR1X - Murata Electronics PCB footprint - Other - Other - SAFFB1G84AB0F0AR1X-3
click to zoom
3D Models
SAFFB1G84AB0F0AR1X - Murata Electronics - 3D model - Other - SAFFB1G84AB0F0AR1X-3
click to zoom

SAFFB1G84AB0F0AR1X Details

  • Manufacturer Part Number:

    SAFFB1G84AB0F0AR1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    TR, EMBOSSED, 7 INCH

  • Filter Type:

    SAW FILTER

  • Height:

    0.5 mm

  • Length:

    1.1 mm

  • Number of Functions:

    1

  • Width:

    0.9 mm

SAFFB1G84AB0F0AR1X Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SAFFB1G84AB0F0AR1X is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
  • The SAFFB1G84AB0F0AR1X has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good thermal conduction by using a thermal pad or thermal interface material, and provide adequate airflow around the component.
  • The maximum operating temperature range for the SAFFB1G84AB0F0AR1X is -40°C to +125°C.
  • To ensure reliability in high-vibration environments, use a secure mounting method, such as a screw or adhesive, and consider using a vibration-dampening material or potting compound to reduce mechanical stress on the component.
  • The recommended storage condition for the SAFFB1G84AB0F0AR1X is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.
