SAK-C167CS-L40M footprint, schematic symbol and 3D model by Infineon

SAK-C167CS-L40M - Infineon

Description: INFINEON - SAK-C167CS-L40M. - 16 Bit Microcontroller, C166 Family C167CR/SR Series Microcontrollers, C166, 16 bit, 33 MHz

Download SAK-C167CS-L40M Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

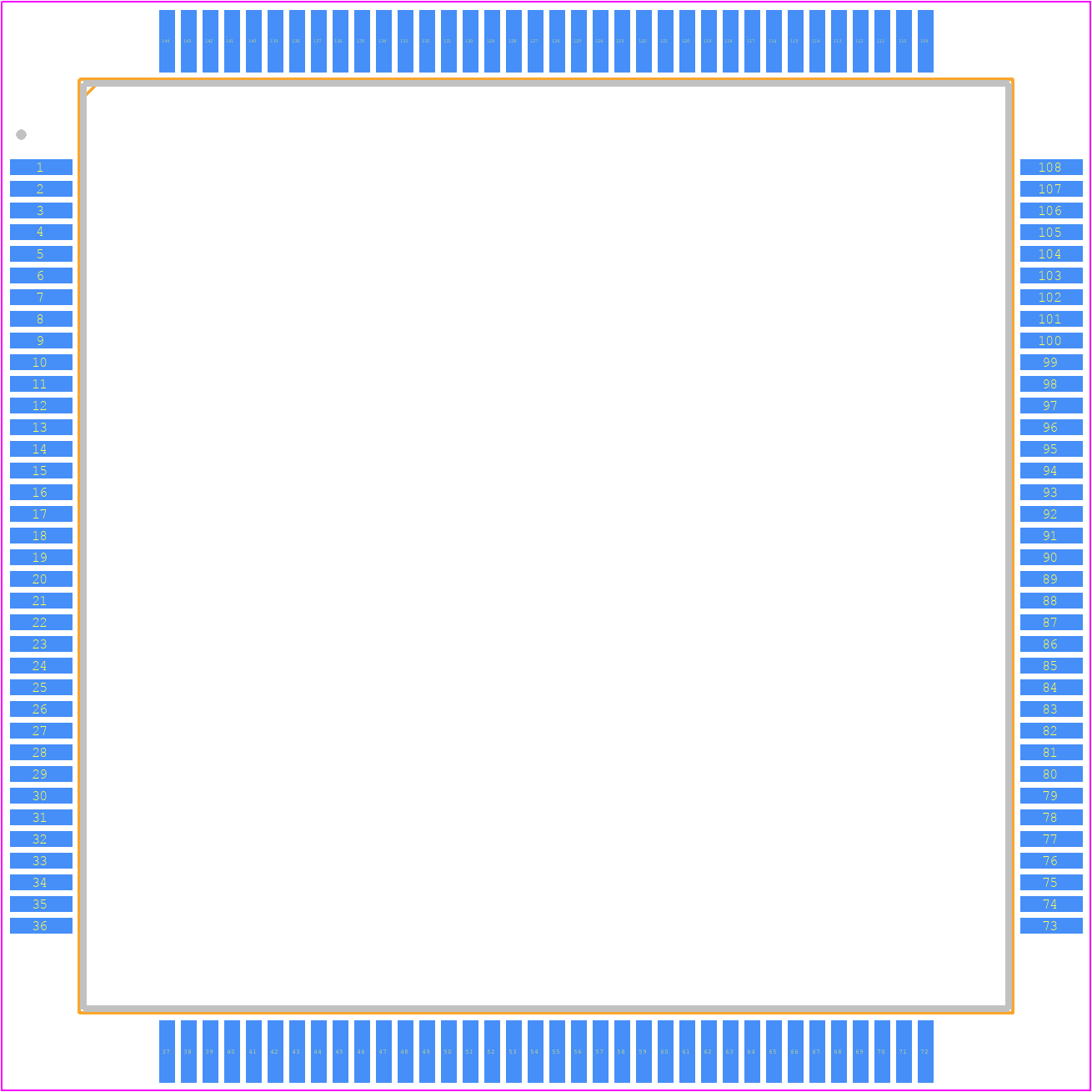

SAK-C167CS-L40M - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - P-MQFP-144-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SAK-C167CS-L40M
Part Number SAK-C167CS-L40M
Manufacturer Infineon
Pin Count 144
Part Category LED (Multiple)
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - P-MQFP-144-8
Pinout / Pin List Click Here (Member Only)

Trust Checks

System Verified

SAK-C167CS-L40M Overview

Use the download button to access the SAK-C167CS-L40M schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SAK-C, or try a keyword search, such as Microcontrollers
