SAM-SH-209D - Goodsky

Description: Electromechanical Relay, DPDT, Latched, 13.5VDC (Coil), 10A (Contact), 30VDC (Contact), Random, DC Output

Download SAM-SH-209D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SAM-SH-209D model

Email notifications will be applied after download.

Send part feedback

Symbol

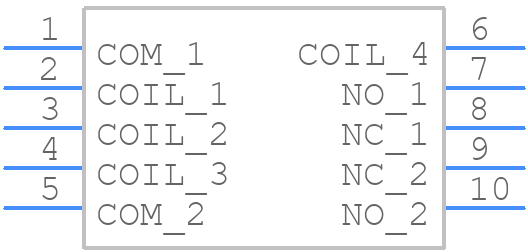

SAM-SH-209D - Goodsky - PCB symbol

PCB Footprints

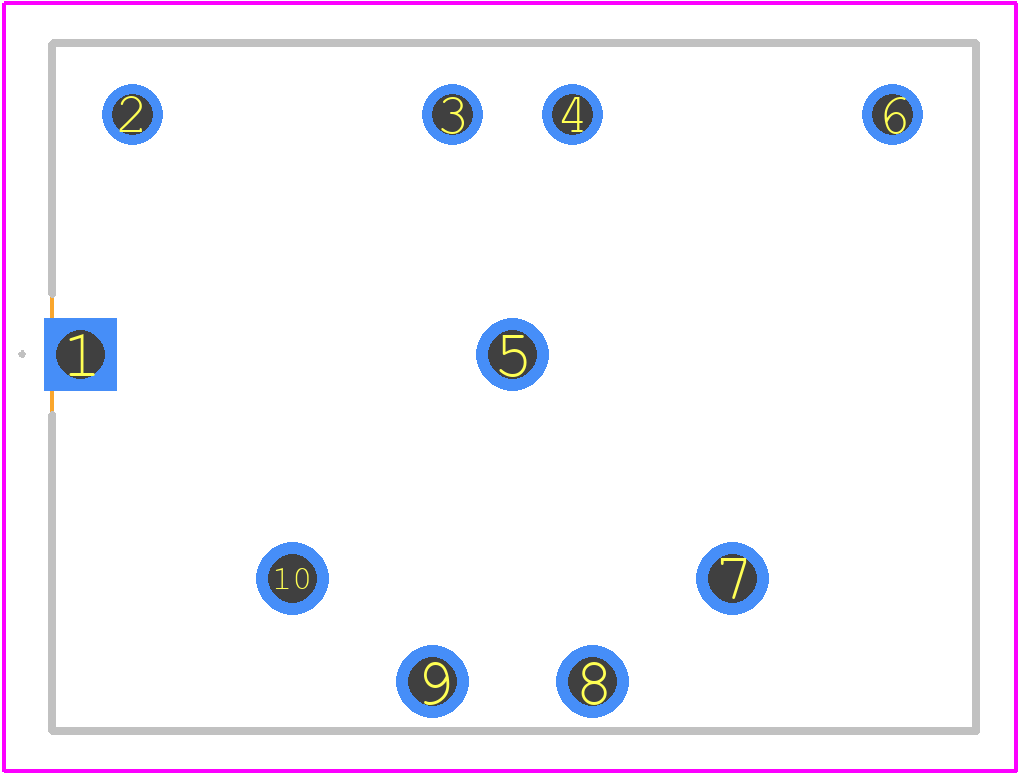

SAM-SH-209D - Goodsky PCB footprint - Other - Other - SAM-SH-209D-6

3D Models

SAM-SH-209D - Goodsky - 3D model - Other - SAM-SH-209D-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for SAM-SH-209D
Part Number SAM-SH-209D
Manufacturer Goodsky
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SAM-SH-209D-6
Released Date Oct 31, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SAM-SH-209D Details
