SAM9X70-I/4PB - Microchip

SAM9X70-I/4PB Details

• Manufacturer Part Number:

  SAM9X70-I/4PB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  240

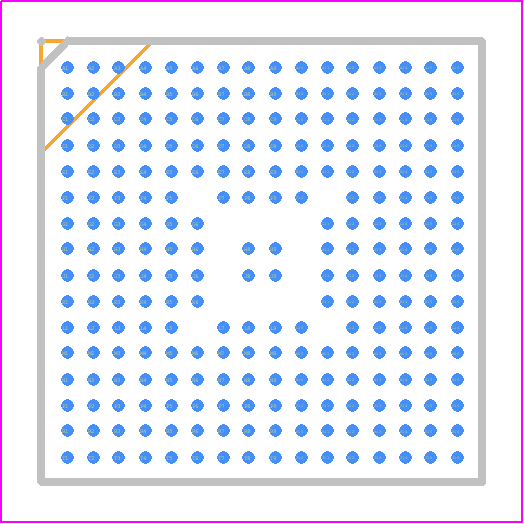

• Manufacturer Package Code:

  TFBGA-240

• Country Of Origin:

  South Korea, Taiwan

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  23

• Address Bus Width:

  23

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B240

• JESD-609 Code:

  e1

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  1

• Number of Serial I/Os:

  13

• Number of Terminals:

  240

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA240,16X16,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (words):

  69632

• Speed:

  800 MHz

• Supply Current-Max:

  3 mA

• Supply Voltage-Max:

  1.21 V

• Supply Voltage-Min:

  1.14 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
