Description:The SAP5S/SAP51 is a next-generation CMOS integrated circuit for AS-Interface networks. This low-level field bus AS-i (Actuator Sensor Interface) was designed for easy, safe, and cost-effective inter-connection of sensors, actuators, and switches. It transports both power and data over the same two-wire unshielded cable.The SAP5S/SAP51 is used as part of a master or slave node and functions as an interface to the physical bus. It provides the power supply, physical data transfer, and communication protocol
The recommended crystal oscillator frequency for the SAP51D-A-G1-R is 12 MHz or 16 MHz, depending on the application requirements and clock speed needed.
To configure the SAP51D-A-G1-R for low power consumption, use the Power Management Unit (PMU) to select the appropriate power mode (e.g., Sleep, Stop, or Hibernate), adjust the clock frequency, and disable unused peripherals.
The maximum operating temperature range for the SAP51D-A-G1-R is -40°C to +85°C, but this can vary depending on the specific package and application requirements.
To implement secure boot on the SAP51D-A-G1-R, use the built-in ROM-based boot loader, configure the Secure Boot Mode, and use cryptographic algorithms such as AES and SHA to ensure the authenticity and integrity of the firmware.
The SAP51D-A-G1-R's ADC has limitations such as a maximum sampling rate of 1.2 Msps, 12-bit resolution, and a maximum input voltage range of 0 to VCC. Additionally, the ADC may have non-linearity and offset errors that need to be calibrated.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SAP51D-A-G1-R Overview

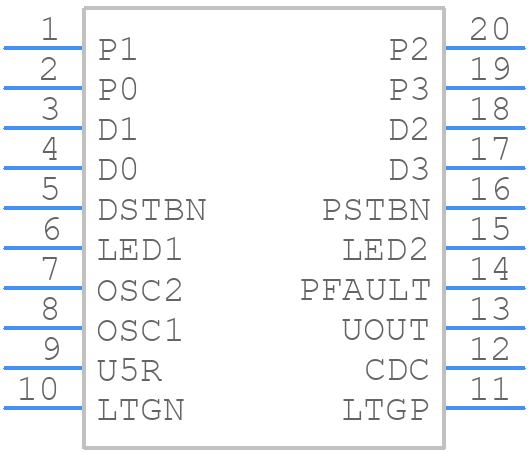

Use the download button to access the SAP51D-A-G1-R schematic symbol, PCB footprint, and 3D model.
