- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SARA-U201-03B
- Part Number SARA-U201-03B
- Manufacturer u-blox
- Pin Count 96
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - SARA-U201-03B
- Released Date Oct 19, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SARA-U201-03B Details
-
Manufacturer Part Number:
SARA-U201-03B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LGA-96
-
HTS Code:
8542.39.00.01
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-XXMA-B96
-
Length:
26 mm
-
Moisture Sensitivity Level:
4
-
Number of Functions:
1
SARA-U201-03B Frequently Asked Questions (FAQs)
-
The maximum power consumption of the SARA-U201-03B module is 350 mA during transmission and 20 mA during reception, according to the datasheet.
-
The SARA-U201-03B module can be configured for LTE-M or NB-IoT using AT commands. The specific commands and settings will depend on the desired network and use case. Refer to the u-blox AT Commands manual for more information.
-
The maximum data transfer rate of the SARA-U201-03B module is up to 375 kbps for LTE-M and up to 27.2 kbps for NB-IoT, depending on the network and configuration.
-
Yes, the SARA-U201-03B module supports multi-band operation, allowing it to operate on different frequency bands depending on the region and network. The specific bands supported depend on the module's configuration and the network provider.
-
Troubleshooting issues with the SARA-U201-03B module typically involves checking the module's configuration, signal strength, and network connectivity. u-blox provides a range of tools and resources, including the u-blox C027-SARA-U201-03B evaluation kit, to help with debugging and troubleshooting.
Trust Checks
Expert Contribution
System Verified
Community Approved
SARA-U201-03B Overview

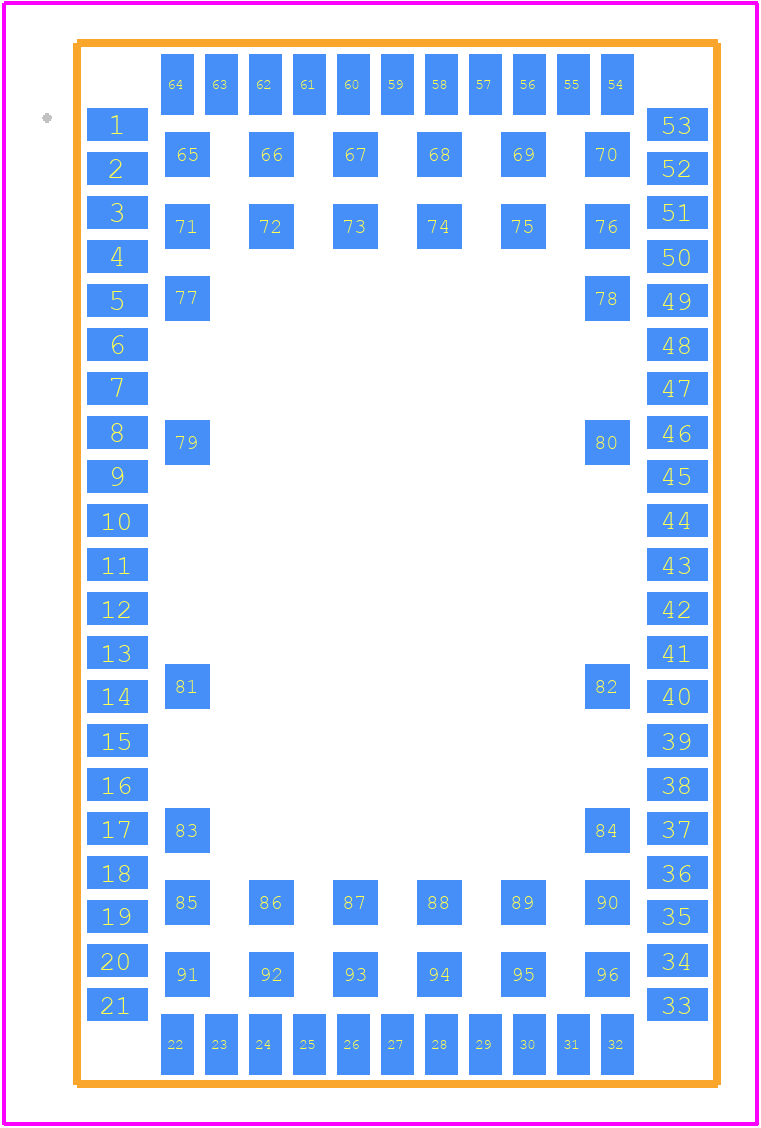

Use the download button to access the SARA-U201-03B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SARA-,
or try a keyword search, such as Other Telecom ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
