SBL-1+ - Mini-Circuits

Description: Plug-In Frequency Mixer Level 7 (LO Power +7 dBm) 1 to 500 MHz

Download SBL-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

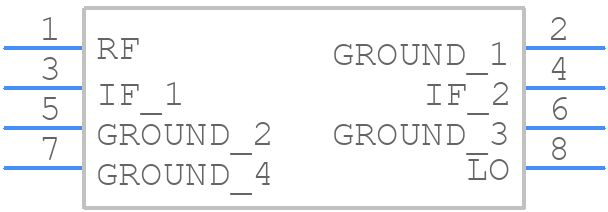

SBL-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SBL-1+ - Mini-Circuits PCB footprint - Other - Other - SBL-1+-3
click to zoom
3D Models
SBL-1+ - Mini-Circuits - 3D model - Other - SBL-1+-3
click to zoom

SBL-1+ Details

  • Manufacturer Part Number:

    SBL-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE A06, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.47

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    DIP8,.2,200

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER

  • VSWR-Max:

    3.75

SBL-1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SBL-1+ requires a bias voltage of 5V and a bias current of 20mA. It's recommended to use a voltage regulator and a current-limiting resistor to ensure stable biasing. Additionally, the bias voltage should be decoupled with a capacitor to reduce noise.
  • The SBL-1+ can handle input powers up to +15dBm. Exceeding this limit may cause compression, distortion, or even damage to the device. It's essential to ensure that the input power is within the recommended range to maintain optimal performance.
  • The SBL-1+ has an input impedance of 50 ohms and an output impedance of 50 ohms. To match the impedance, use a pi-network or a T-network of resistors and capacitors. Mini-Circuits provides a matching network design guide in their application note AN-60-014.
  • The SBL-1+ operates over a temperature range of -40°C to +85°C. However, the device's performance may vary with temperature, and it's essential to consider this when designing your system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SBL-1+ Overview

Use the download button to access the SBL-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SBL-1, or try a keyword search, such as RF/Microwave Mixers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
