SBL-1 - Mini-Circuits

Description: Level 7 (LO Power +7 dBm) 1 to 500 MHz

Download SBL-1 Model

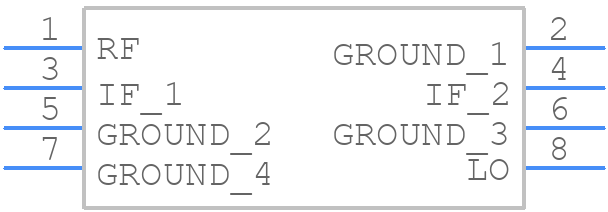

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SBL-1 - Mini-Circuits PCB footprint - Other - Other - SBL-1-2
click to zoom
3D Models
SBL-1 - Mini-Circuits  - 3D model - Other - SBL-1-2
click to zoom

SBL-1 Details

  • Manufacturer Part Number:

    SBL-1

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CASE A06, 8 PIN

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8 dB

  • Input Power-Max (CW):

    17 dBm

  • JESD-609 Code:

    e0

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    DIP8,.2,200

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • VSWR-Max:

    2.5

SBL-1 Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, it's recommended to use a low-impedance path for the power supply lines and to decouple the power supply with capacitors.
  • The SBL-1 is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limit. Mini-Circuits recommends using a voltage regulator to set the supply voltage to 12V, and to limit the current to 100mA or less. Additionally, it's recommended to use a resistor in series with the input signal to prevent overvoltage.
  • The SBL-1 can handle input powers up to +10dBm, but it's recommended to limit the input power to +5dBm or less to ensure optimal performance and prevent damage to the amplifier.
  • The SBL-1 has an input impedance of 50 ohms and an output impedance of 50 ohms. To match the impedance, Mini-Circuits recommends using a 50-ohm transmission line or a resistive match network at the input and output of the amplifier.
  • The SBL-1 is specified to operate from -40°C to +85°C, but it's recommended to operate the amplifier within a temperature range of 0°C to +70°C for optimal performance and reliability.
