SBP9989DNJ footprint, schematic symbol and 3D model by Texas Instruments

Symbol

click to zoom

PCB Footprints

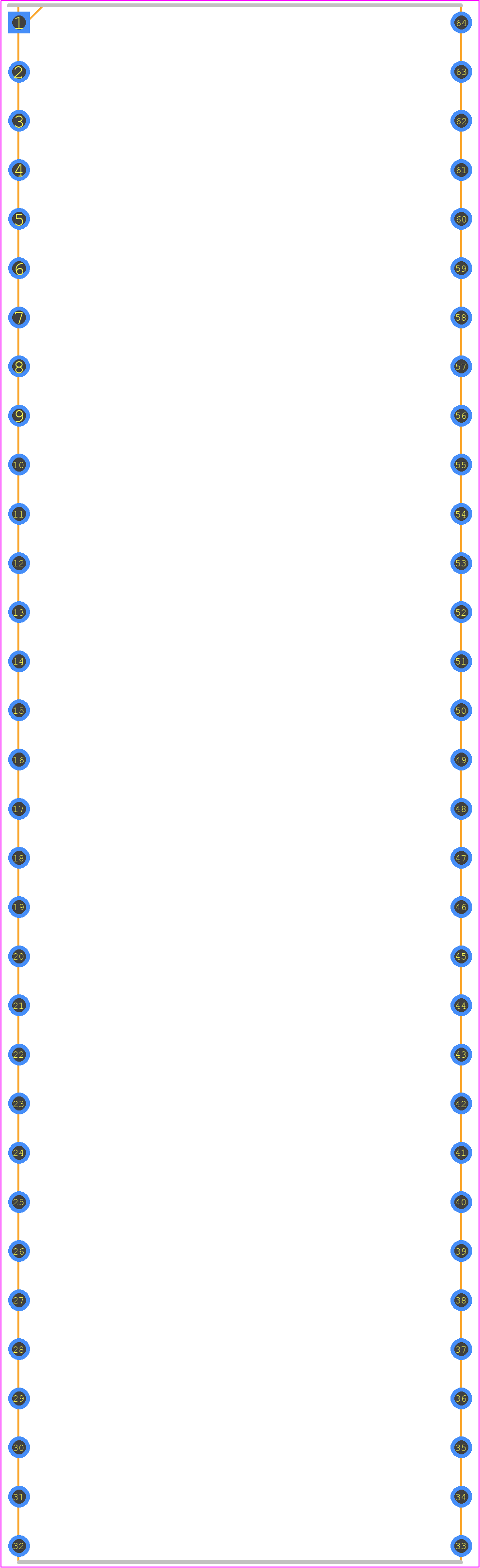

SBP9989DNJ - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - 64-PIN CERAMIC DUAL-IN-LINE PACKAGE

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SBP9989DNJ
Part Number SBP9989DNJ
Manufacturer Texas Instruments
Pin Count 64
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - 64-PIN CERAMIC DUAL-IN-LINE PACKAGE
Released Date Apr 17, 2024
Last Modified Date Apr 17, 2024 3:56 AM UTC
Pinout / Pin List Click Here (Member Only)

SBP9989DNJ Details

Manufacturer Part Number:
SBP9989DNJ
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Package Description:
DIP-64
ECCN Code:
3A001.a.2.c
HTS Code:
8542.31.00.20
Manufacturer:
Texas Instruments
YTEOL:
0
Address Bus Width:
15
Bit Size:
16
Boundary Scan:
NO
External Data Bus Width:
16
Format:
FIXED POINT
Integrated Cache:
NO
JESD-30 Code:
R-CDIP-T64
Length:
80.285 mm
Low Power Mode:
NO
Number of Terminals:
64
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
DIP
Package Equivalence Code:
DIP64,.9
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Screening Level:
MIL-STD-883 Class B
Seated Height-Max:
5.72 mm
Speed:
4.4 MHz
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
22.86 mm
uPs/uCs/Peripheral ICs Type:
MICROPROCESSOR

SBP9989DNJ Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range (-40°C to 125°C). Also, ensure the power supply voltage (VCC) is within the recommended range (1.8V to 3.6V).
Use a 10uF ceramic capacitor with a 0.1uF ceramic capacitor in parallel, placed as close to the device as possible. This helps to filter out noise and ensure stable operation.
The POR and BOR features are enabled by default. To disable them, tie the POR/BOR pin to VCC. Ensure the power supply is stable and within the recommended range to avoid unwanted resets.
Use a crystal oscillator with a frequency range of 12MHz to 40MHz. Ensure the clock signal is clean and stable, and use a clock buffer if necessary to reduce jitter and noise.
