SBR20100CTFP - Diodes Incorporated

Description: Schottky Diodes & Rectifiers 20A 100V

Download SBR20100CTFP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

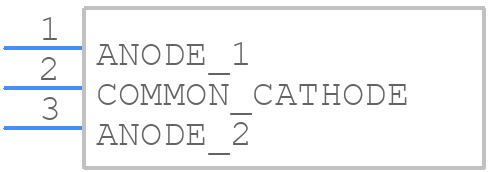

Symbol
SBR20100CTFP - Diodes Incorporated - PCB symbol
click to zoom

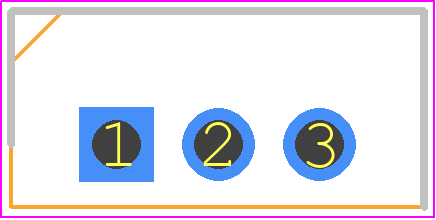

PCB Footprints
SBR20100CTFP - Diodes Incorporated PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - ITO-220AB
click to zoom
3D Models
SBR20100CTFP - Diodes Incorporated - 3D model - Transistor Outline, Vertical - ITO-220AB
click to zoom

SBR20100CTFP Details

  • Manufacturer Part Number:

    SBR20100CTFP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TO-220AB

  • Package Description:

    ITO-220AB, 3 PIN

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Application:

    FAST SOFT RECOVERY

  • Case Connection:

    ISOLATED

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.75 V

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

SBR20100CTFP Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for SBR20100CTFP is a standard SOD-123 package footprint with a pad size of 1.5mm x 1.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating curve provided in the datasheet, and to ensure that the device is operated within the recommended operating temperature range of -55°C to 150°C.
  • The maximum allowable current for SBR20100CTFP is 10A, but it is recommended to operate the device at a maximum current of 5A to ensure reliability and to prevent overheating.
  • Yes, SBR20100CTFP can be used in high-frequency applications up to 1MHz, but it is recommended to follow the recommended layout and PCB design guidelines to minimize parasitic inductance and capacitance.
  • To handle thermal management, it is recommended to use a thermal pad on the PCB, and to ensure good thermal conductivity between the device and the PCB. Additionally, it is recommended to use a heat sink or a thermal interface material to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SBR20100CTFP Overview

Use the download button to access the SBR20100CTFP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SBR20, or try a keyword search, such as Rectifier Diodes
