SBTN01N-05 - Mean Well

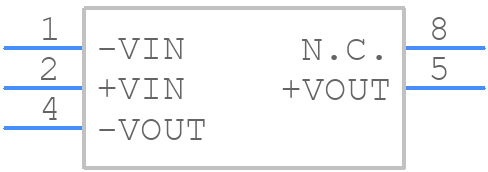

SBTN01N-05 Details

• Manufacturer Part Number:

  SBTN01N-05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  6.4

• Analog IC - Other Type:

  DC-DC UNREGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  26.4 V

• Input Voltage-Min:

  21.6 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDMA-F5

• Length:

  12.9 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  240

• Seated Height-Max:

  7.6 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

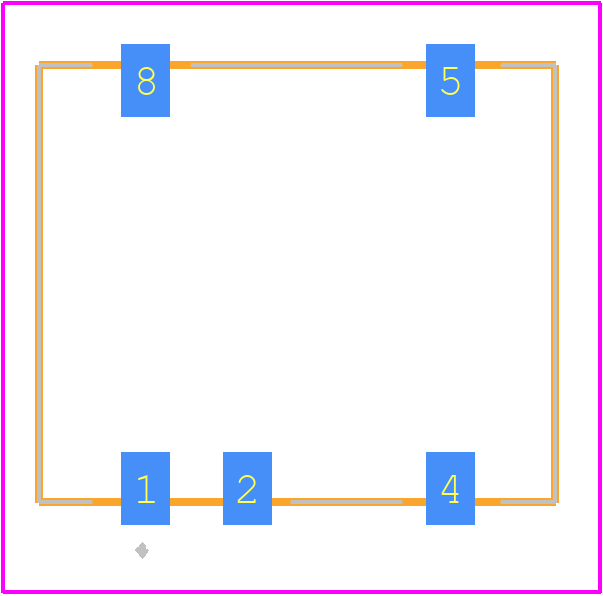

• Terminal Form:

  FLAT

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  10.9 mm
