Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SC1302F
- Part Number SC1302F
- Manufacturer SEMTECH
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-8
- Released Date Apr 22, 2026
- Last Modified Date Apr 22, 2026 11:06 AM UTC
- Pinout / Pin List Click Here (Member Only)
SC1302F Details
-
Manufacturer Part Number:
SC1302F
-
Manufacturer:
Semtech Corporation
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SC1302F Overview

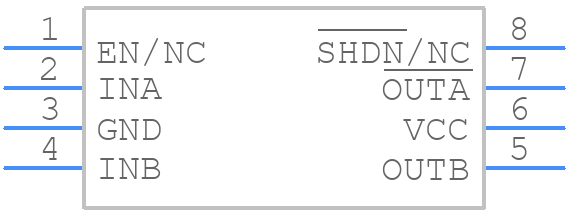

Use the download button to access the SC1302F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SC130,
or try a keyword search, such as MOSFET Drivers
