SC16C754BIA68,529 - NXP

SC16C754BIA68,529 Details

• Manufacturer Part Number:

  SC16C754BIA68,529

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

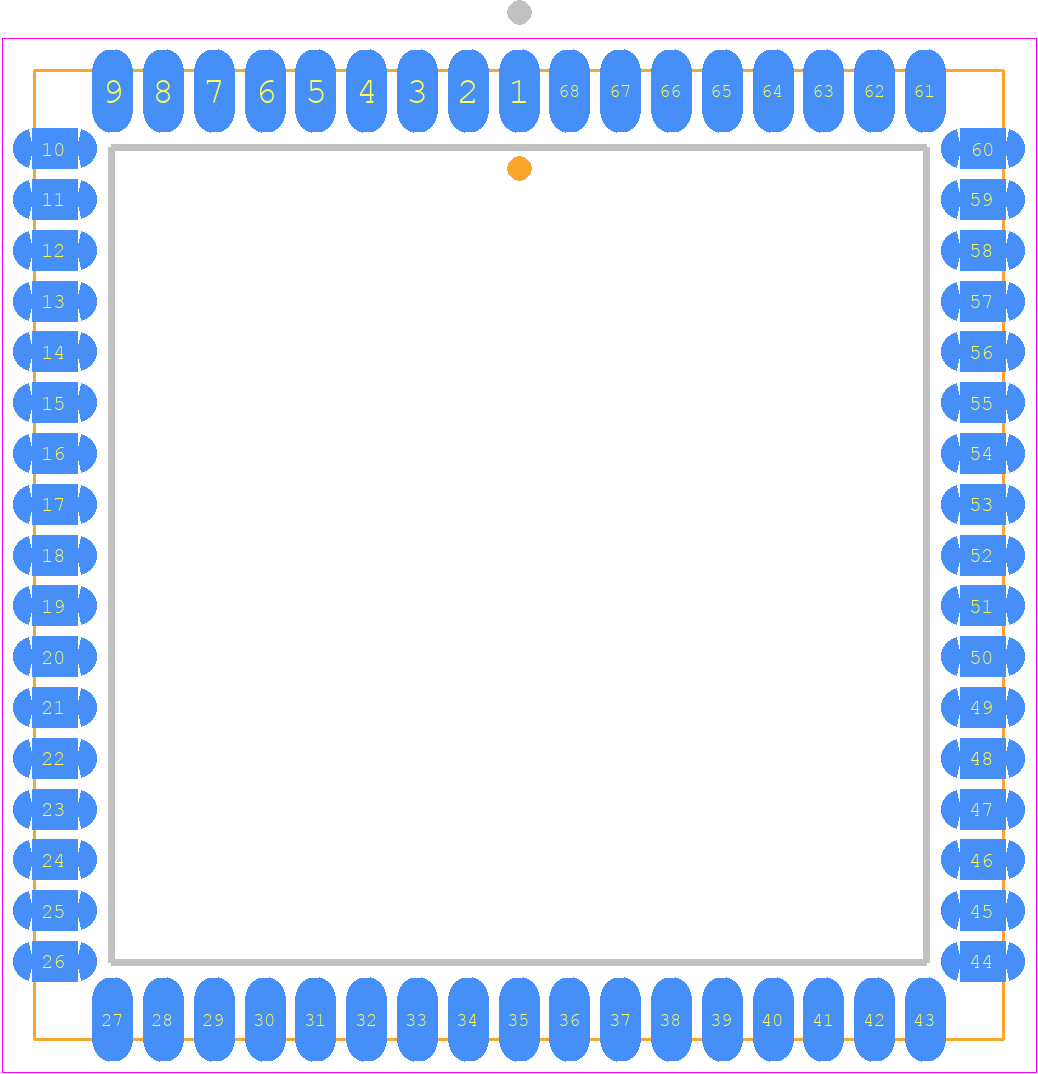

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, MS-018, SOT188-2, LCC-68

• Pin Count:

  68

• Manufacturer Package Code:

  SOT188-2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 2.5V OR 5V SUPPLY

• Address Bus Width:

  3

• Boundary Scan:

  NO

• Clock Frequency-Max:

  80 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Transfer Rate-Max:

  0.625 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J68

• JESD-609 Code:

  e3

• Length:

  24.23 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  4

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  24.23 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
