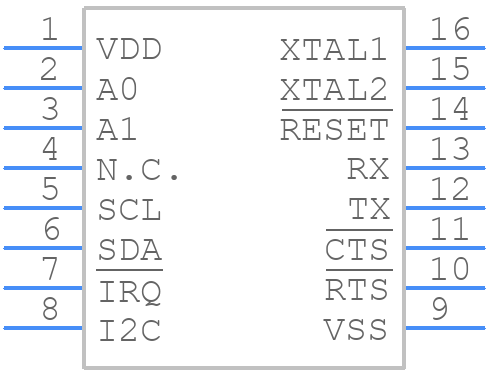

SC16IS741AIPW - NXP

SC16IS741AIPW Details

• Manufacturer Part Number:

  SC16IS741AIPW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  TSSOP-16

• Country Of Origin:

  Mainland China

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  1

• Additional Feature:

  IT ALSO OPERATES AT 48MHZ CLCK @ 2.5V NOM SPLY @ -40 TO 85DEGC, SPI INTRFC IS ALSO AVAILABLE

• Boundary Scan:

  NO

• Bus Compatibility:

  I2C; RS485; RS232

• Clock Frequency-Max:

  80 MHz

• Communication Protocol:

  MIL STD 1553A; MIL STD 1553B

• Data Transfer Rate-Max:

  0.625 MBps

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Serial I/Os:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  95 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, I2C BUS
