SC1894A-00C13E - Analog Devices

Description: RF Amplifier RF Power Amp Linearizer

Download SC1894A-00C13E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SC1894A-00C13E - Analog Devices - PCB symbol
click to zoom
PCB Footprints

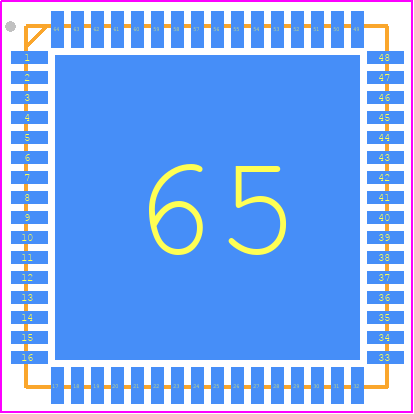

SC1894A-00C13E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - K6499MK+1B
click to zoom
3D Models
SC1894A-00C13E - Analog Devices - 3D model - Quad Flat No-Lead - K6499MK+1B
click to zoom

SC1894A-00C13E Details

  • Manufacturer Part Number:

    SC1894A-00C13E

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    64-LFCSP-9X9X0.85

  • Package Description:

    9 X 9 MM, GREEN, QFN-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    64-LFCSP-9X9X0.85

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2014-07-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

SC1894A-00C13E Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as minimizing trace lengths, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The SC1894A-00C13E requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close to the device as possible. Additionally, use a 1uF ceramic capacitor to decouple the analog and digital power pins.
  • The maximum clock frequency for the SC1894A-00C13E is 100 MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal. It's essential to ensure that the clock signal is clean and has a low jitter to maintain optimal performance.
  • The SC1894A-00C13E has several configuration options, such as gain settings, filter settings, and output modes. To configure the device optimally, refer to the datasheet and application notes, and consult with Analog Devices' support resources. It's also recommended to use Analog Devices' evaluation boards and software tools to simplify the configuration process.
  • The SC1894A-00C13E has a maximum junction temperature of 150°C. Ensure that the device is properly heat-sinked, and the PCB is designed to dissipate heat efficiently. Use thermal vias and thermal pads to connect the device to a heat sink or a metal plate. Additionally, ensure that the device is operated within the recommended operating temperature range of -40°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC1894A-00C13E Overview

Use the download button to access the SC1894A-00C13E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC189, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
