SC284ULTRT - SEMTECH

Description: Buck Switching Regulator IC Positive Programmable 0.8V 2 Output 1.8A 20-VFQFN Exposed Pad

Download SC284ULTRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

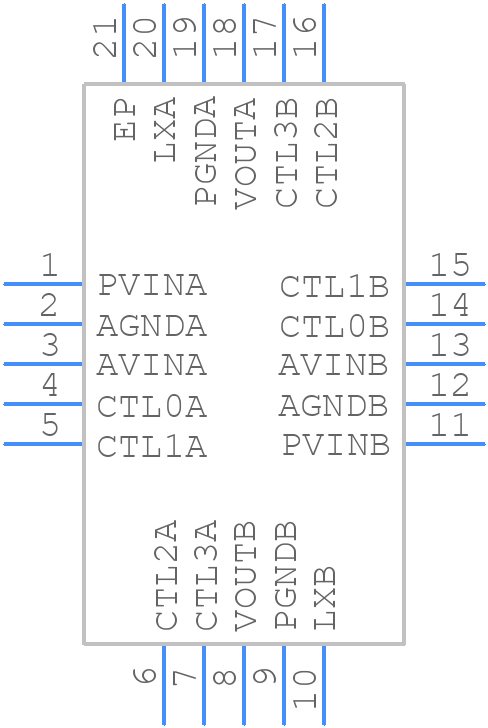

SC284ULTRT - SEMTECH - PCB symbol
click to zoom
PCB Footprints
SC284ULTRT - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x3 MLPQ-UT20_2025
click to zoom
3D Models
SC284ULTRT - SEMTECH - 3D model - Quad Flat No-Lead - 3x3 MLPQ-UT20_2025
click to zoom

SC284ULTRT Details

  • Manufacturer Part Number:

    SC284ULTRT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD
