SC56-51QBWA/D - Kingbright

Description: LED Displays & Accessories 14.2 mm (0.56 inch) Single Digit Numeric Display

Download SC56-51QBWA/D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

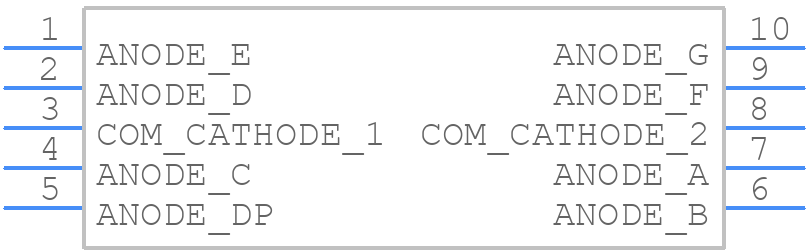

SC56-51QBWA/D - Kingbright - PCB symbol
click to zoom
PCB Footprints

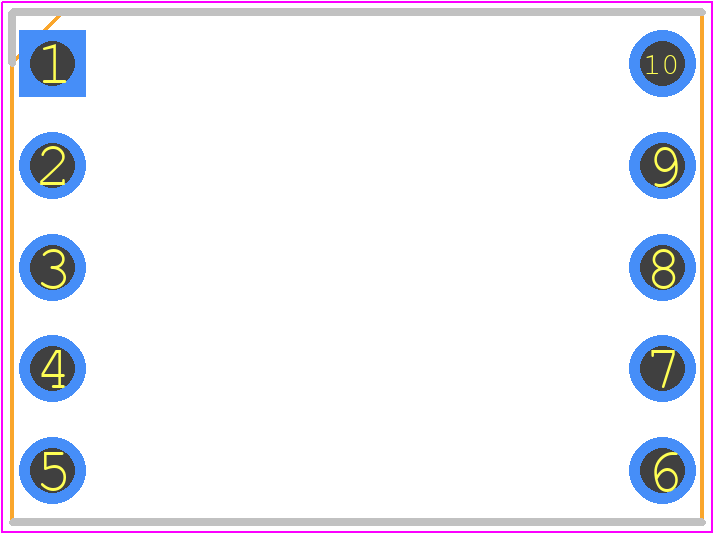

SC56-51QBWA/D - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10_2024
click to zoom
3D Models
SC56-51QBWA/D - Kingbright - 3D model - Dual-In-Line Sockets - DIP-10_2024
click to zoom

SC56-51QBWA/D Details

  • Manufacturer Part Number:

    SC56-51QBWA/D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    BLUE

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

SC56-51QBWA/D Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SC56-51QBWA/D is -20°C to 30°C, with a relative humidity of 60% or less.
  • While SC56-51QBWA/D is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum soldering temperature for SC56-51QBWA/D is 260°C for 3 seconds, with a peak temperature of 240°C.
  • Yes, SC56-51QBWA/D is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to avoid damage to the component.
  • The typical lifespan of SC56-51QBWA/D is around 50,000 hours, depending on operating conditions, such as temperature, humidity, and drive current.
