Part Image

SC810ULTRT - SEMTECH

Description: Charger IC Lithium Ion 6-MLPD-UT (2x2)

Download SC810ULTRT Model

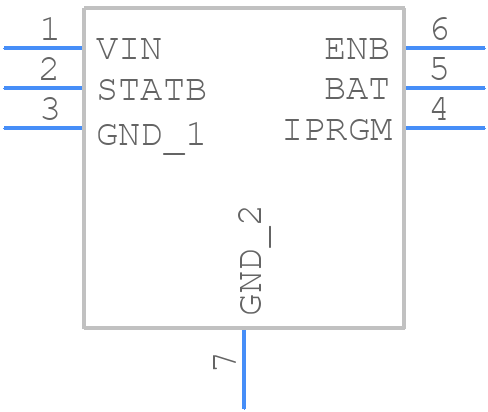

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SC810ULTRT - SEMTECH PCB footprint - Small Outline No-lead - Small Outline No-lead - MLPD-UT6 2x2
click to zoom
3D Models
SC810ULTRT - SEMTECH  - 3D model - Small Outline No-lead - MLPD-UT6 2x2
click to zoom

SC810ULTRT Details

  • Manufacturer Part Number:

    SC810ULTRT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 2 MM, 0.60 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, MLPD-6

  • Pin Count:

    6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    8.2 V

  • Supply Voltage-Min (Vsup):

    4.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

SC810ULTRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use a 50-ohm impedance-controlled line to the antenna.
  • Implement frequency hopping, use a high-quality antenna, and consider using a shield around the module to reduce electromagnetic interference (EMI).
  • The maximum transmission power is +20 dBm (100 mW) for the 868 MHz and 915 MHz frequency bands, and +14 dBm (25 mW) for the 433 MHz frequency band.
  • Use the low-power mode (LPM) by setting the LPM pin high, and adjust the transmission power and data rate to minimize power consumption. Additionally, consider using a low-power microcontroller and optimizing the system's sleep modes.
  • A quarter-wave monopole antenna or a dipole antenna is recommended. Place the antenna at least 10 mm away from the PCB edge and ensure it is perpendicular to the PCB to minimize detuning effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SC810ULTRT Overview

Use the download button to access the SC810ULTRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SC810, or try a keyword search, such as Power Management Circuits
