Technical Content
Part Image

SCA-4-10+ - Mini-Circuits

Description: Surface Mount Power Splitter/Combiner

Download SCA-4-10+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

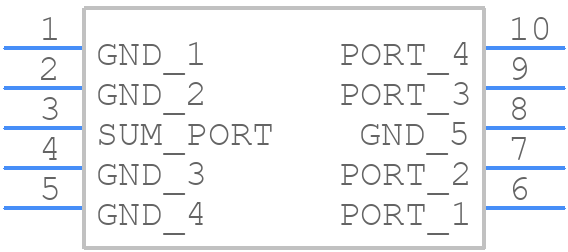

Symbol
SCA-4-10+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCA-4-10+ - Mini-Circuits PCB footprint - Other - Other - SCA-4-10+-1
click to zoom
3D Models
SCA-4-10+ - Mini-Circuits - 3D model - Other - SCA-4-10+-1
click to zoom

SCA-4-10+ Details

  • Manufacturer Part Number:

    SCA-4-10+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE DZ943, 10 PIN

  • Country Of Origin:

    India, Israel, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.25

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.5 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.38

SCA-4-10+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the SCA-4-10+. It's recommended to use a solid ground plane, and to connect the shield of the SMA connectors to the ground plane. The datasheet provides some guidance, but it's also recommended to consult with Mini-Circuits' application notes and seek advice from experienced RF engineers.
  • The SCA-4-10+ has a 50 ohm input and output impedance. To impedance match, you can use a pi-network or a T-network topology. You can also use a network analyzer to measure the S-parameters and design a custom matching network. Consult with Mini-Circuits' application notes and seek advice from experienced RF engineers for more information.
  • The maximum power handling of the SCA-4-10+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the maximum input power is +20 dBm (100 mW) and the maximum output power is +22 dBm (160 mW). Exceeding these limits may cause damage to the device.
  • To troubleshoot issues with the SCA-4-10+, start by checking the power supply voltage and ensuring it's within the recommended range. Then, check the input and output signals using a spectrum analyzer or oscilloscope. Consult the datasheet and application notes for guidance on troubleshooting common issues such as oscillations, noise, and distortion.
  • The SCA-4-10+ is a commercial-grade component and may not be suitable for high-reliability or space-constrained applications. Mini-Circuits offers other products that are specifically designed for high-reliability and space-constrained applications. Consult with Mini-Circuits' sales team or application engineers to determine the best solution for your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCA-4-10+ Overview

Use the download button to access the SCA-4-10+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCA-4, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
