Part Image

SCA-4-132+ - Mini-Circuits

Description: RF Power Divider 5 MHz ~ 1.3 GHz Isolation (Min) 15dB, 1.56 VSWR (Max)15° Imbalance (Max) 10-SMD, Flat Leads

Download SCA-4-132+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

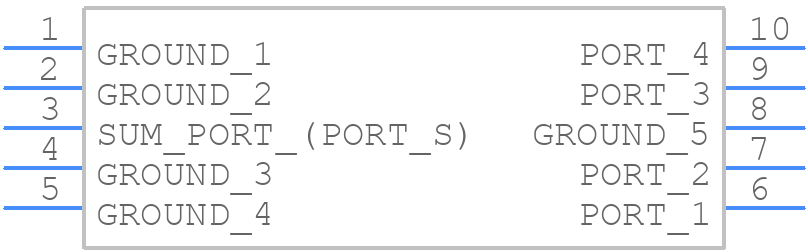

Symbol
SCA-4-132+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCA-4-132+ - Mini-Circuits PCB footprint - Other - Other - DZ943_2024
click to zoom
3D Models
SCA-4-132+ - Mini-Circuits - 3D model - Other - DZ943_2024
click to zoom

SCA-4-132+ Details

  • Manufacturer Part Number:

    SCA-4-132+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.8 dB

  • Isolation-Min:

    13 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Max:

    13000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    FL10,.25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.79

SCA-4-132+ Frequently Asked Questions (FAQs)

  • A good PCB layout and grounding scheme is crucial for optimal performance. It is recommended to use a multi-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. The device should be grounded to the PCB ground plane using vias and a solid copper pour.
  • The SCA-4-132+ requires a bias voltage of +12V to +15V and a bias current of 100mA to 150mA. Ensure that the power supply is stable and can provide the required current. Also, make sure to follow the recommended biasing circuit and component values as shown in the datasheet.
  • The maximum input power that the SCA-4-132+ can handle is +10dBm. Exceeding this power level may cause damage to the device or affect its performance.
  • To optimize the amplifier's performance, it is recommended to follow the application notes and design guidelines provided by Mini-Circuits. Additionally, consider the specific requirements of your application, such as frequency range, gain, and noise figure, and adjust the amplifier's configuration accordingly.
  • The operating temperature range of the SCA-4-132+ is -40°C to +85°C. Operating the device outside of this range may affect its performance or reduce its lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCA-4-132+ Overview

Use the download button to access the SCA-4-132+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCA-4, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
