A symmetrical layout with a solid ground plane and minimal signal traces near the accelerometer is recommended. Avoid placing the accelerometer near high-frequency components or antennas.
Calibration is not typically required for this accelerometer, as it is factory-calibrated. However, if you need to perform calibration, you can use a known acceleration source (e.g., a shaker table) and measure the output voltage to determine the sensitivity and offset.
The SCA61T-FAHH1G-6 is rated for operation from -40°C to 125°C, but it's recommended to derate the operating temperature range based on the specific application and environment.
Use ESD protection devices (e.g., TVS diodes) on the power supply lines and signal lines to prevent damage from electrostatic discharge. Follow proper handling and storage procedures to minimize ESD exposure.
Use a 10-100 nF decoupling capacitor between the power supply lines (VCC and GND) as close to the accelerometer as possible to reduce noise and ensure stable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCA61T-FAHH1G-6 Overview

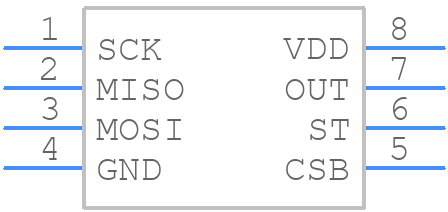

Use the download button to access the SCA61T-FAHH1G-6 schematic symbol and PCB footprint.
