SCANSTA101SM/NOPB - Texas Instruments

Description: Low Voltage IEEE 1149.1 System Test Access (STA) Master

Download SCANSTA101SM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

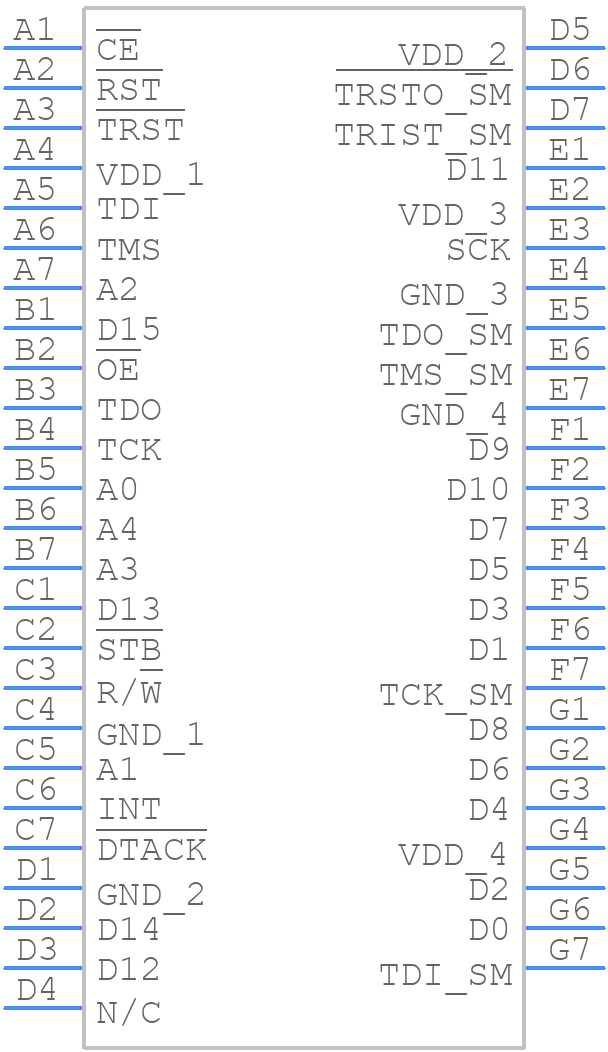

SCANSTA101SM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SCANSTA101SM/NOPB - Texas Instruments PCB footprint - BGA - BGA - NZA0049A
click to zoom
3D Models
SCANSTA101SM/NOPB - Texas Instruments - 3D model - BGA - NZA0049A
click to zoom

SCANSTA101SM/NOPB Details

  • Manufacturer Part Number:

    SCANSTA101SM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    49

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B49

  • JESD-609 Code:

    e1

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA49,7X7,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

SCANSTA101SM/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the SCANSTA101SM/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure accurate temperature measurement, calibrate the device using the calibration coefficients provided by Texas Instruments, and ensure that the device is properly soldered and connected to a reliable power source.
  • The SCANSTA101SM/NOPB can operate from -40°C to 125°C, but the accuracy of the temperature measurement may degrade at extreme temperatures.
  • Yes, the SCANSTA101SM/NOPB is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure reliable operation.
  • The SCANSTA101SM/NOPB can be interfaced with a microcontroller using a standard I2C or SPI interface, and Texas Instruments provides example code and application notes to facilitate the integration process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCANSTA101SM/NOPB Overview

Use the download button to access the SCANSTA101SM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
