Texas Instruments provides a recommended PCB layout in the SCANSTA111SMX evaluation module documentation. It's essential to follow the layout guidelines to minimize noise, ensure proper signal integrity, and optimize performance.
The SCANSTA111SMX supports various scan modes, such as single-shot, continuous, and triggered modes. Configuration is done through the device's registers, which are accessible via the SPI interface. Refer to the datasheet and application notes for specific register settings and configuration details.
The maximum sampling rate of the SCANSTA111SMX is 1 MSPS. As the sampling rate increases, power consumption also increases. To optimize power consumption, adjust the sampling rate according to your application's requirements. Refer to the datasheet for power consumption vs. sampling rate curves.
The SCANSTA111SMX has a built-in POR and BOR circuitry. To handle these reset events, ensure that your system design includes a proper power-up sequence and reset handling mechanism. This may involve using external reset controllers or implementing a reset handler in your firmware.
The SCANSTA111SMX can use an external clock source or its internal oscillator. For optimal performance, use a high-quality external clock source, such as a crystal oscillator. This ensures a stable clock signal, which is essential for accurate ADC conversions and overall system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCANSTA111SMX Overview

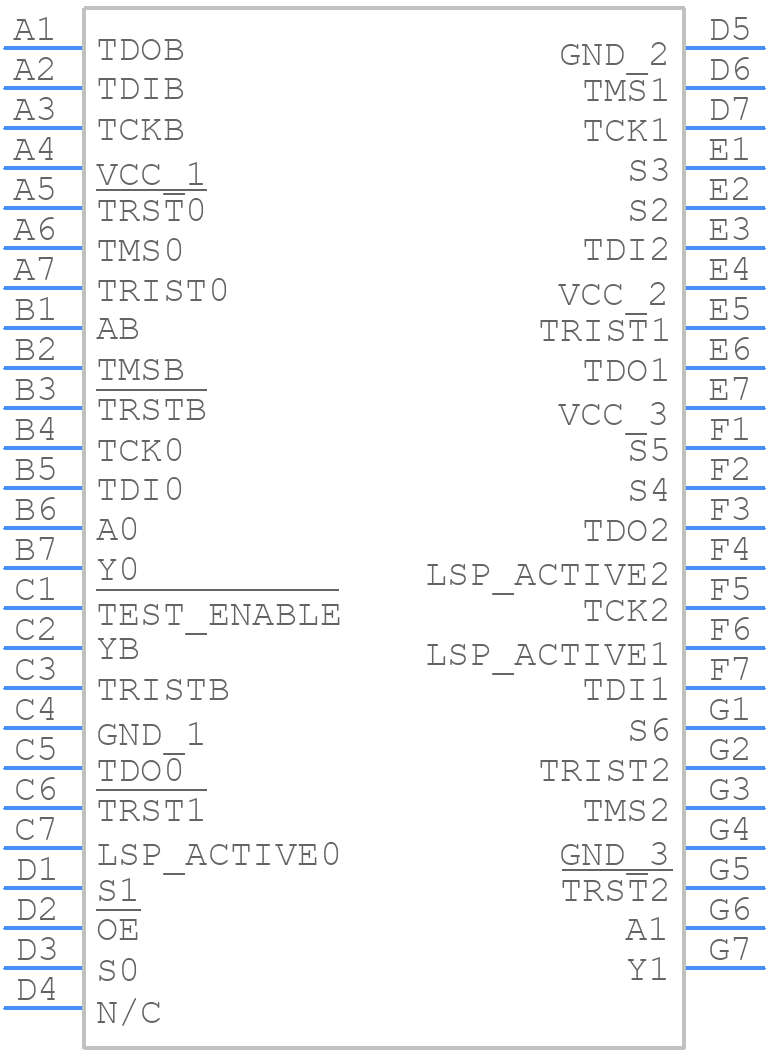

Use the download button to access the SCANSTA111SMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
