SCBD-10-63HP+ - Mini-Circuits

Description: 10 dB SMT Bi-Directional Coupler, 50 - 6000 MHz, 50Ω

Download SCBD-10-63HP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

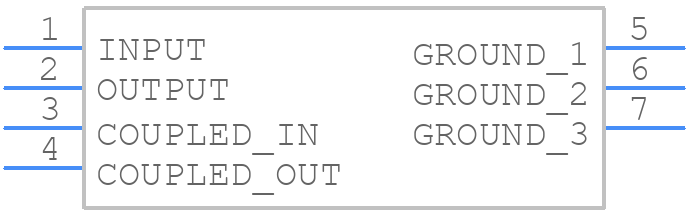

Symbol
SCBD-10-63HP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCBD-10-63HP+ - Mini-Circuits PCB footprint - Other - Other - JB1233-1
click to zoom
3D Models
SCBD-10-63HP+ - Mini-Circuits - 3D model - Other - JB1233-1
click to zoom

SCBD-10-63HP+ Details

  • Manufacturer Part Number:

    SCBD-10-63HP+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.24

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    46.99 dBm

  • Insertion Loss-Max:

    1.2 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    1.07

SCBD-10-63HP+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SCBD-10-63HP+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-014.
  • The maximum power handling of the SCBD-10-63HP+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The SCBD-10-63HP+ is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally enhanced package.
  • Common issues with the SCBD-10-63HP+ include poor return loss, high insertion loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure that the device is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for more information.
