SCC2230-E02-05 - Murata Electronics

Description: Gyro/Accel Sensor 3-axis SPI +/-2g SMD24 Murata SCC2230-E02-05 3-Axis Accelerometer & Gyroscope, 3 → 3.6 V 24-Pin SMD

Download SCC2230-E02-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

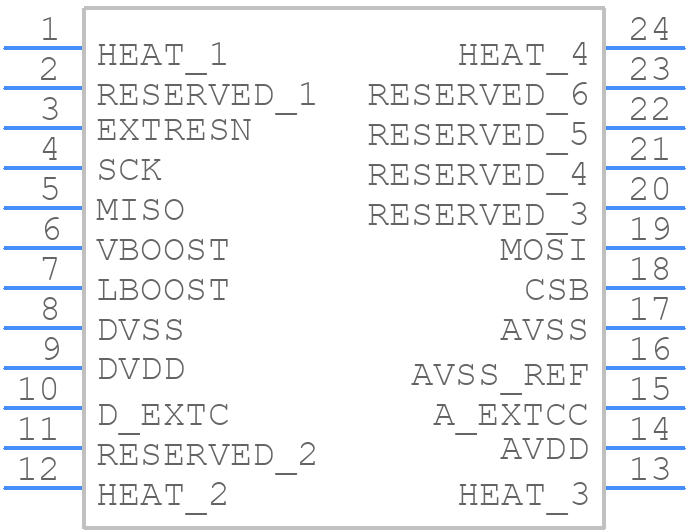

SCC2230-E02-05 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

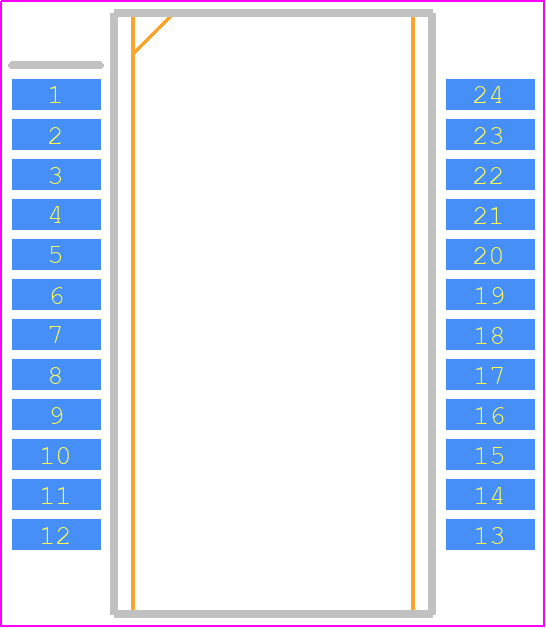

SCC2230-E02-05 - Murata Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 24-SOIC
click to zoom
3D Models
SCC2230-E02-05 - Murata Electronics - 3D model - Small Outline Packages - 24-SOIC
click to zoom

SCC2230-E02-05 Details

  • Manufacturer Part Number:

    SCC2230-E02-05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-24

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,3,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    4.35 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Width:

    8.5 mm

SCC2230-E02-05 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the SCC2230-E02-05 can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and footprint design.
  • The SCC2230-E02-05 has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation paths, such as thermal vias and heat sinks, and following recommended PCB design guidelines.
  • Murata recommends following the JEDEC J-STD-020D.1 standard for soldering the SCC2230-E02-05. This standard outlines the recommended soldering temperature profiles and techniques to ensure reliable assembly.
  • The SCC2230-E02-05 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Murata's application engineers to discuss specific requirements and potential customization options.
  • The SCC2230-E02-05 meets various regulatory standards, including RoHS and REACH. For specific regulatory requirements, consult with Murata's regulatory compliance team to ensure the component meets your needs.
