SCC2691AC1N24 - NXP

Description: UART Interface IC 5V INDUSTRIAL UART 1 CHANNEL

Download SCC2691AC1N24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

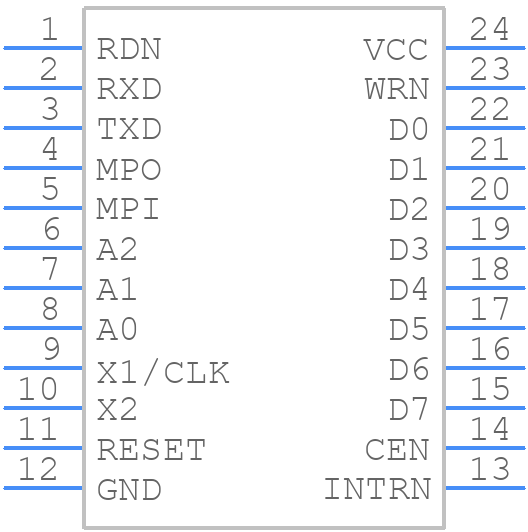

SCC2691AC1N24 - NXP - PCB symbol
click to zoom
PCB Footprints

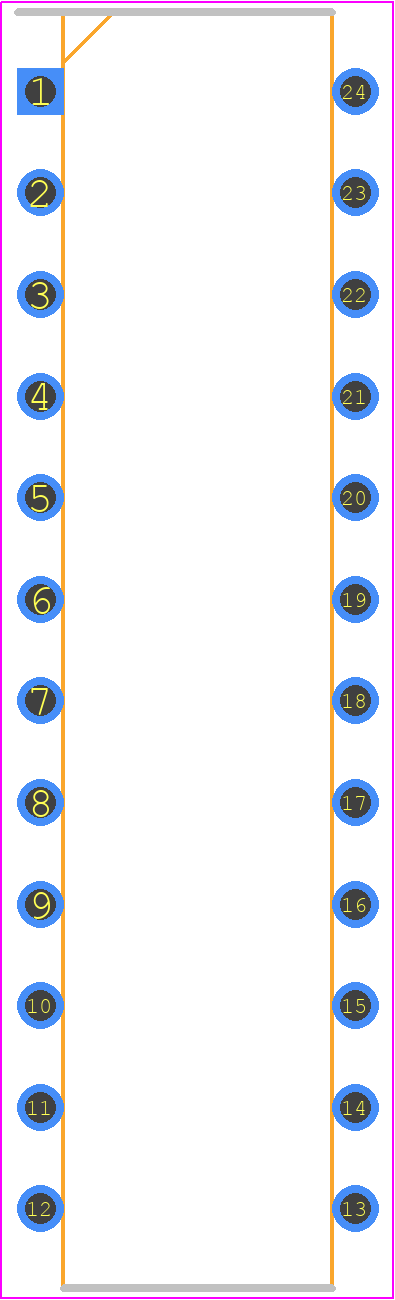

SCC2691AC1N24 - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT222-1(2022)
click to zoom
3D Models
SCC2691AC1N24 - NXP - 3D model - Dual-In-Line Packages - SOT222-1(2022)
click to zoom

SCC2691AC1N24 Details

  • Manufacturer Part Number:

    SCC2691AC1N24

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.300 INCH, PLASTIC, MS-001, SOT-222-1, DIP-24

  • Pin Count:

    24

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    3

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    4 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Encoding/Decoding Method:

    NRZ

  • Data Transfer Rate-Max:

    0.0046875 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.7 mm

  • Low Power Mode:

    YES

  • Number of I/O Lines:

    1

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • RAM (words):

    0

  • Seated Height-Max:

    4.7 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
