SCC2692AC1N40 - NXP

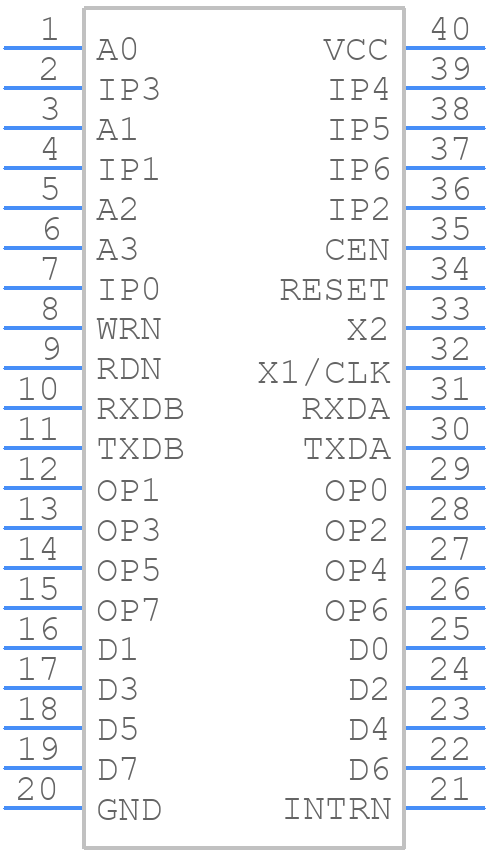

SCC2692AC1N40 Details

• Manufacturer Part Number:

  SCC2692AC1N40

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

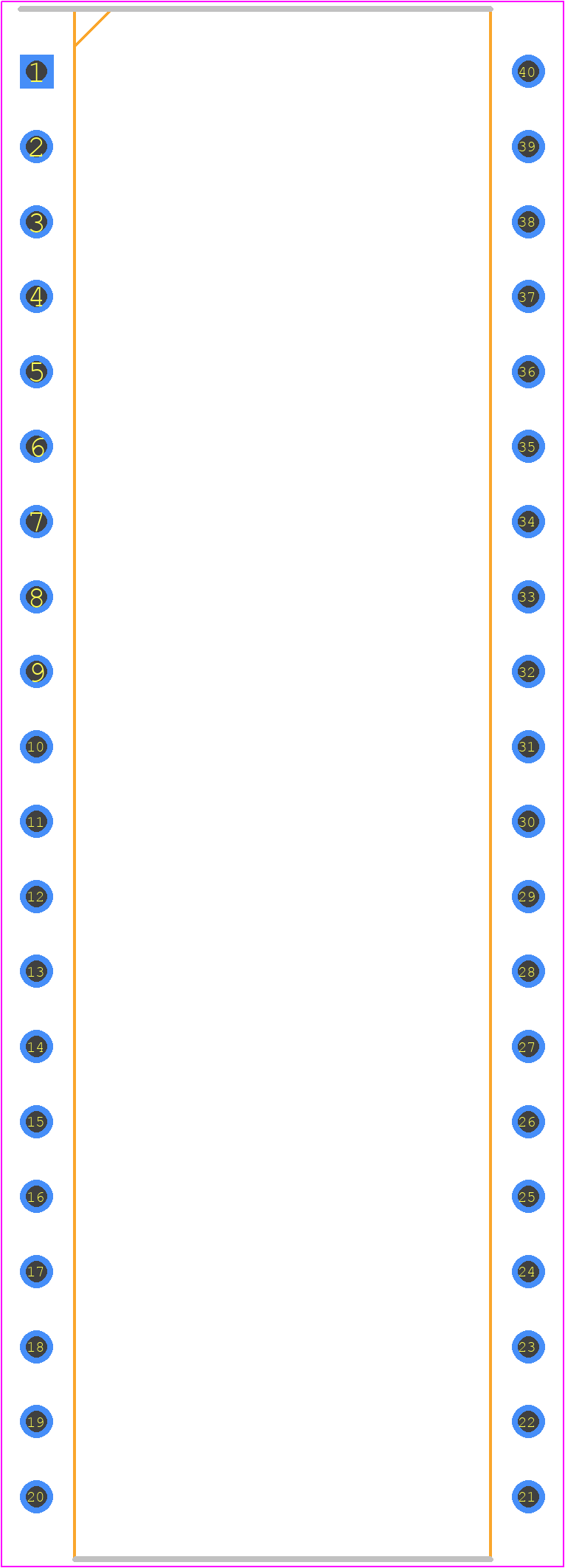

  0.600 INCH, PLASTIC, DIP-40

• Pin Count:

  40

• HTS Code:

  8542.31.00.30

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Address Bus Width:

  4

• Boundary Scan:

  NO

• Clock Frequency-Max:

  3.6864 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.125 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDIP-T40

• JESD-609 Code:

  e2

• Length:

  52 mm

• Low Power Mode:

  YES

• Number of I/O Lines:

  15

• Number of Serial I/Os:

  2

• Number of Terminals:

  40

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  4.7 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN SILVER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
