Semtech recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate power plane for the SCF5000. The device should be placed near the center of the board, with the RF input and output traces routed away from the digital signals. A detailed layout guide is available in the SCF5000 Application Note AN12071.
To optimize the SCF5000 for low power consumption, ensure that the device is operated at the lowest possible frequency, and use the built-in power-saving features such as the Low Power Mode (LPM) and the Sleep Mode. Additionally, minimize the number of active circuits, reduce the voltage supply, and use a low-power oscillator. Refer to the SCF5000 datasheet for more information on power-saving features.
The SCF5000 is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It is recommended to operate the device within the -20°C to +85°C range for optimal performance and reliability.
Yes, the SCF5000 can be used with an external LNA to improve the receiver sensitivity. However, the LNA must be designed to match the SCF5000's input impedance, and the gain of the LNA must be carefully controlled to avoid overloading the SCF5000's input stage. Refer to the SCF5000 Application Note AN12072 for more information on using an external LNA.
To troubleshoot common issues with the SCF5000, start by verifying the PCB layout and ensuring that the device is properly soldered. Check the power supply voltage and ensure that it is within the recommended range. Use a spectrum analyzer to verify the RF signal quality, and check the device's register settings to ensure that they are correctly configured. Refer to the SCF5000 datasheet and application notes for more troubleshooting tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCF5000 Overview

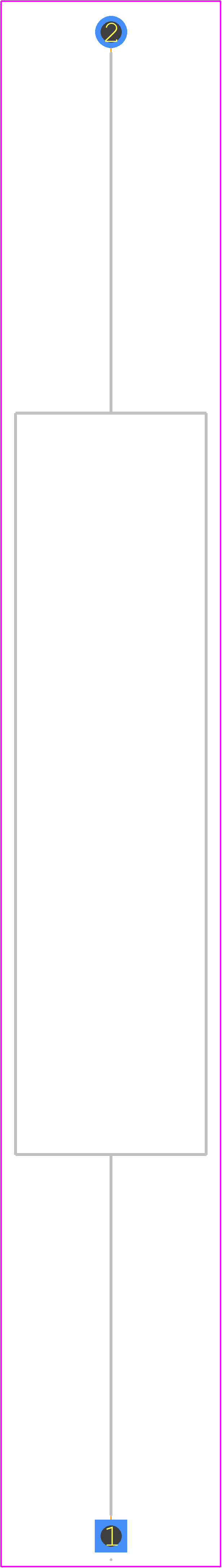

Use the download button to access the SCF5000 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SCF50,
or try a keyword search, such as Rectifier Diodes
