Part Image

SCG-2-592+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SURF MT RoHS

Download SCG-2-592+ Model

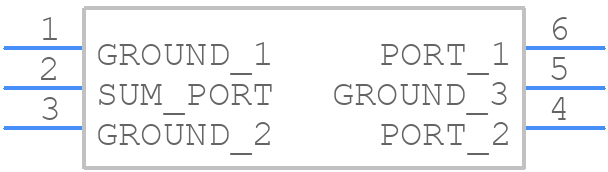

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SCG-2-592+ - Mini-Circuits PCB footprint - Other - Other - GE0805C-1_Thickness=1.069mm
click to zoom

SCG-2-592+ Details

  • Manufacturer Part Number:

    SCG-2-592+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.25

  • Additional Feature:

    ISOLATION-MIN (DB):11

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33.01 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    5900 MHz

  • Operating Frequency-Min:

    3800 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • VSWR-Max:

    1.22

SCG-2-592+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout with 50-ohm impedance. Proper grounding and decoupling are crucial for optimal performance and noise reduction.
  • To achieve the best possible noise figure and gain flatness, ensure that the amplifier is operated within its recommended operating conditions, including bias voltage, current, and temperature. Additionally, use a high-quality, low-noise power supply and ensure proper PCB layout and grounding.
  • The SCG-2-592+ can handle input powers up to +10 dBm without damage. However, it's recommended to operate the amplifier at input powers below +5 dBm to ensure optimal performance and prevent compression.
  • To troubleshoot oscillation or instability issues, check the PCB layout and grounding scheme, ensure proper decoupling and bypassing, and verify that the amplifier is operated within its recommended operating conditions. Additionally, use a spectrum analyzer to identify any unwanted signals or oscillations.
  • Store the SCG-2-592+ in a dry, static-free environment, away from direct sunlight and moisture. Handle the device by the edges, avoiding touching the pins or sensitive surfaces. Use anti-static wrist straps and mats when handling the device to prevent ESD damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCG-2-592+ Overview

Use the download button to access the SCG-2-592+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SCG-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
