SCHF-31+ - Mini-Circuits

Description: 765.5MHz Center Frequency High Pass RF Filter (Radio Frequency) 1.469GHz Bandwidth 1dB 8-SMD, Flat Leads

Download SCHF-31+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

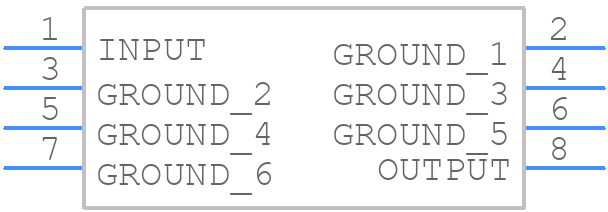

SCHF-31+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

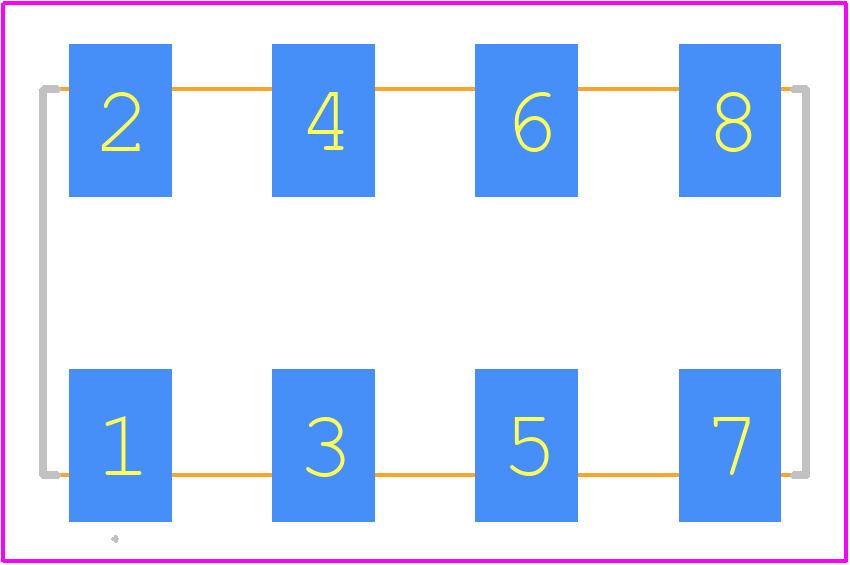

SCHF-31+ - Mini-Circuits PCB footprint - Other - Other - YY161_2026-2.2
click to zoom

SCHF-31+ Details

  • Manufacturer Part Number:

    SCHF-31+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Average Input Power:

    5 W

  • Center or Cutoff Frequency (fo/fc):

    765.5 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    7.11 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.5 dB

  • Length:

    19.05 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.3

  • Width:

    9.65 mm

SCHF-31+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The SCHF-31+ can generate significant heat during operation. It's crucial to provide adequate heat sinking, such as a thermal pad or a heat sink, to keep the junction temperature below 125°C. Ensure good thermal conductivity between the device and the heat sink.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to keep the input power below 10 dBm to avoid compression and distortion. Exceeding this power may lead to reduced performance, increased distortion, or even device damage.
  • Yes, the SCHF-31+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout consideration to ensure proper phasing and impedance matching.
  • The recommended biasing conditions for SCHF-31+ are Vdd = 12V, Vgg = -2V, and Idq = 100mA. However, the optimal biasing conditions may vary depending on the specific application and operating frequency. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCHF-31+ Overview

Use the download button to access the SCHF-31+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SCHF-, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
