- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SCLF-21.4
- Part Number SCLF-21.4
- Manufacturer Mini-Circuits
- Pin Count 8
- Part Category Filter
- Package Category Other

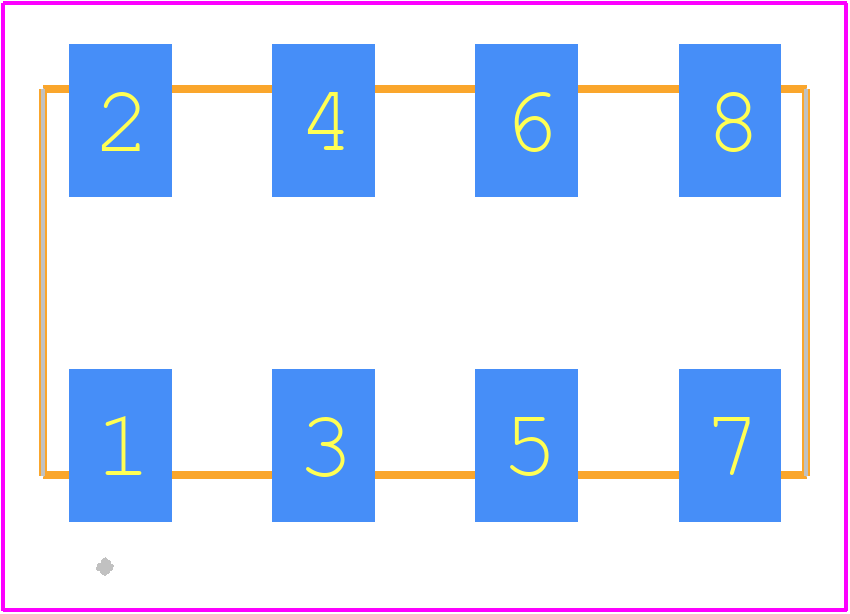

- Footprint Name Other - SCLF-21.4-1
- Released Date Mar 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SCLF-21.4 Details
-
Manufacturer Part Number:
SCLF-21.4
-
Pbfree Code:
No
-
Part Life Cycle Code:
End Of Life
-
Manufacturer:
Mini-Circuits
-
YTEOL:
0
-
Attenuation Frequency-Max:
41 MHz
-
Attenuation Frequency-Min:
32 MHz
-
Attenuation@Freq-Max:
40 dB
-
Attenuation@Freq-Min:
20 dB
-
Average Input Power:
0.5 W
-
Center or Cutoff Frequency (fo/fc):
24.5 MHz
SCLF-21.4 Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
-
The SCLF-21.4 requires a 50-ohm termination for optimal performance. You can use a 50-ohm resistor or a 50-ohm termination network. Make sure to choose a termination that can handle the maximum power rating of the device.
-
The SCLF-21.4 has an operating temperature range of -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance.
-
Yes, the SCLF-21.4 is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to follow Mini-Circuits' recommended assembly and soldering procedures to ensure reliable operation.
-
Common issues with the SCLF-21.4 can be troubleshooted by checking the PCB layout, termination, and soldering quality. Ensure that the device is properly terminated, and the PCB layout follows Mini-Circuits' recommended guidelines. Also, check for any signs of physical damage or overheating.
Trust Checks
Expert Contribution
System Verified
Community Approved
SCLF-21.4 Overview
Use the download button to access the SCLF-21.4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCLF-,
or try a keyword search, such as General Purpose Passive Filters
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
