SCM1242MF - SANKEN ELECTRIC CO.

Description: Triple Half Bridge Motor Driver 300V 33-Pin DIP

Download SCM1242MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

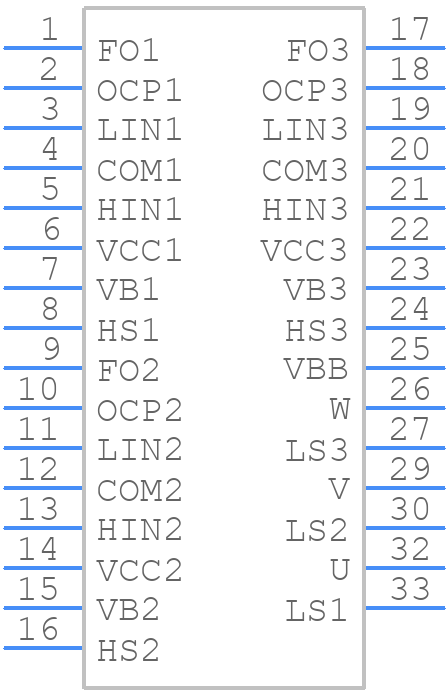

SCM1242MF - SANKEN ELECTRIC CO. - PCB symbol
click to zoom
PCB Footprints

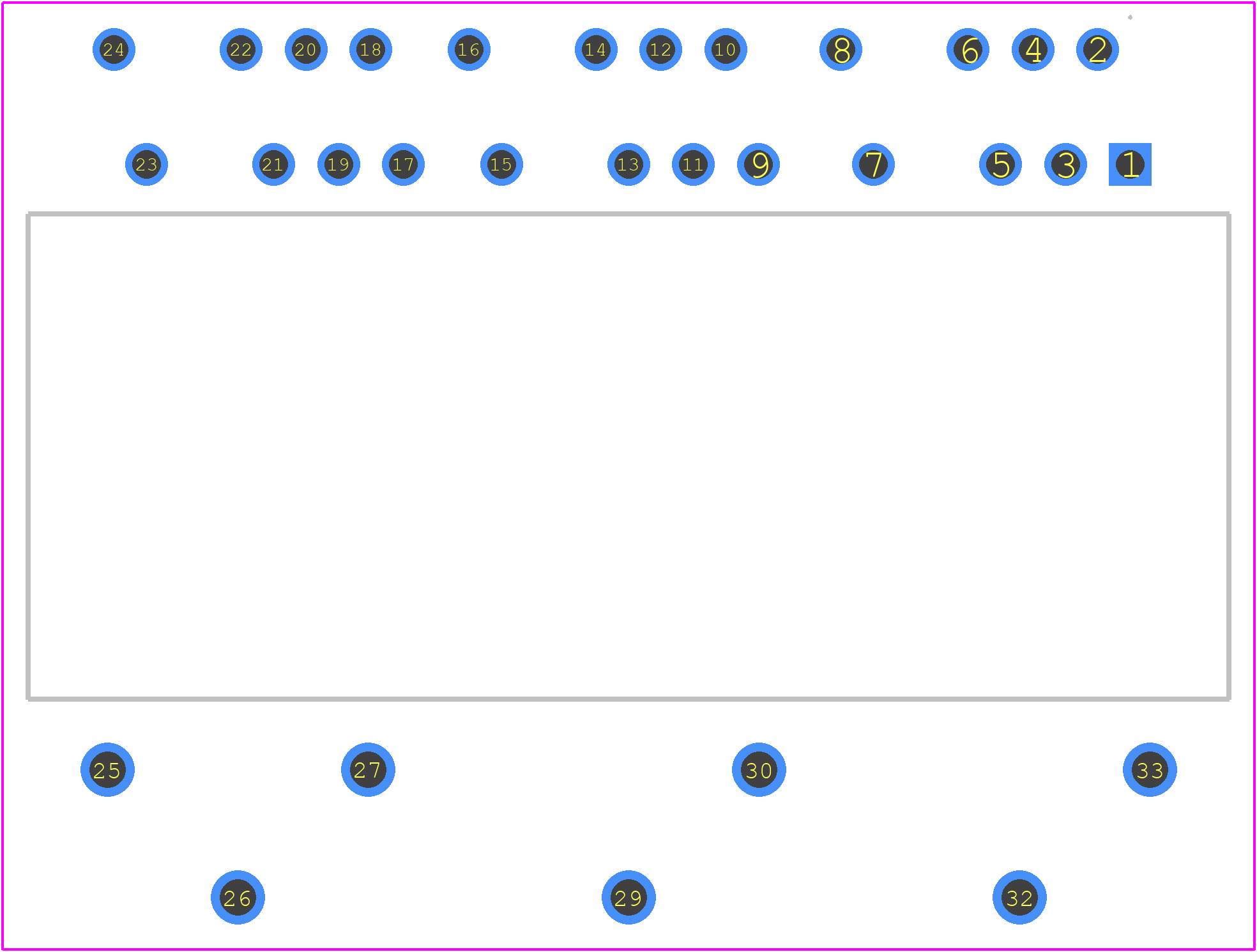

SCM1242MF - SANKEN ELECTRIC CO. PCB footprint - Other - Other - DIP33_2022
click to zoom
3D Models
SCM1242MF - SANKEN ELECTRIC CO. - 3D model - Other - DIP33_2022
click to zoom

SCM1242MF Details

  • Manufacturer Part Number:

    SCM1242MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-33

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Sanken Electric Co Ltd

  • YTEOL:

    8.45

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T33

  • Number of Functions:

    1

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    MODULE,33LEAD,1.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

SCM1242MF Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. Multiple vias can be used to connect the thermal pad to the copper area.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's junction temperature to prevent overheating.
  • Handle the device by the body, not the leads. Avoid bending or twisting the leads. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and handling procedures to prevent ESD damage.
  • Yes, the SCM1242MF is suitable for high-reliability and automotive applications. However, additional testing and qualification may be required to meet specific industry standards (e.g., AEC-Q100). Consult with Sanken Electric Co Ltd for more information.
  • Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, component selection, and thermal management. Use oscilloscopes and other diagnostic tools to identify issues. Contact Sanken Electric Co Ltd's technical support for further assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCM1242MF Overview

Use the download button to access the SCM1242MF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCM12, or try a keyword search, such as Motion Control Electronics
