SCN-2-19+ - Mini-Circuits

Description: Signal Conditioning 2 Ways LTCC Power Splitter, 1425 - 1900 MHz, 50

Download SCN-2-19+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

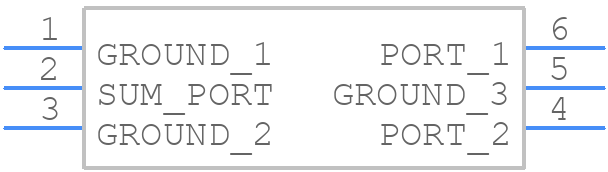

Symbol
SCN-2-19+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-2-19+ - Mini-Circuits PCB footprint - Other - Other - SCN-2-19+-2
click to zoom
3D Models
SCN-2-19+ - Mini-Circuits - 3D model - Other - SCN-2-19+-2
click to zoom

SCN-2-19+ Details

  • Manufacturer Part Number:

    SCN-2-19+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.34

  • Additional Feature:

    ISOLATION-MIN (DB):17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43.01 dBm

  • Insertion Loss-Max:

    0.9 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1900 MHz

  • Operating Frequency-Min:

    1425 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Equivalence Code:

    SOLCC6,.06,40

  • RF/Microwave Device Type:

    COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • VSWR-Max:

    1.29

SCN-2-19+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides guidance on impedance matching in their application notes. You can also use simulation tools like ADS or AWR to design a matching network. Additionally, consider consulting with a experienced RF engineer or seeking guidance from Mini-Circuits' technical support.
  • While the datasheet provides some information on power handling, it's essential to note that the maximum power handling of the SCN-2-19+ depends on various factors, including frequency, temperature, and operating conditions. As a general guideline, the device can handle up to 1W of continuous power. However, it's recommended to consult with Mini-Circuits' technical support or application engineers for specific guidance on power handling for your particular application.
  • Thermal management is crucial for the SCN-2-19+. Ensure good thermal conductivity by using a thermally conductive PCB material, and consider using thermal vias or a heat sink to dissipate heat. Additionally, operate the device within its recommended temperature range, and avoid overheating, which can lead to reduced performance and lifespan.
  • The SCN-2-19+ is a sensitive device and requires proper ESD precautions to prevent damage. Always handle the device in an ESD-controlled environment, use ESD-safe materials, and follow proper grounding procedures. Additionally, consider using ESD protection devices, such as ESD suppressors or TVS diodes, to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-2-19+ Overview

Use the download button to access the SCN-2-19+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
