SCN-2-35+ - Mini-Circuits

Description: 2 Ways LTCC Power Splitter, 2825 - 3700 MHz, 50Ω

Download SCN-2-35+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

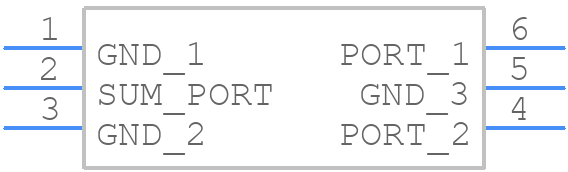

SCN-2-35+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SCN-2-35+ - Mini-Circuits PCB footprint - Other - Other - SCN-2-35+-1
click to zoom
3D Models
SCN-2-35+ - Mini-Circuits - 3D model - Other - SCN-2-35+-1
click to zoom

SCN-2-35+ Details

  • Manufacturer Part Number:

    SCN-2-35+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):13

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.02 dBm

  • Insertion Loss-Max:

    1.3 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    3700 MHz

  • Operating Frequency-Min:

    2825 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

SCN-2-35+ Frequently Asked Questions (FAQs)

  • The SCN-2-35+ can operate from -40°C to +85°C, but the recommended operating temperature range is 0°C to +70°C for optimal performance.
  • While the SCN-2-35+ is designed to operate in a variety of environments, it's recommended to keep the relative humidity below 80% to prevent moisture-related issues.
  • For optimal performance, it's recommended to follow the recommended PCB layout and spacing guidelines provided in the application note, which includes keeping the component spacing at least 0.5 mm and using a solid ground plane.
  • The SCN-2-35+ is designed to withstand moderate vibration, but it's recommended to follow the recommended mounting and screw torque guidelines to ensure reliable operation in high-vibration environments.
  • It's recommended to use a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed as close as possible to the power pins, to ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCN-2-35+ Overview

Use the download button to access the SCN-2-35+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCN-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
