SCP-3-1+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download SCP-3-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

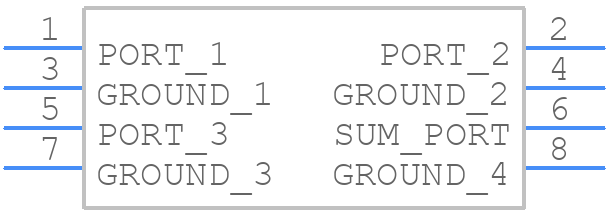

Symbol
SCP-3-1+ - Mini-Circuits - PCB symbol
click to zoom

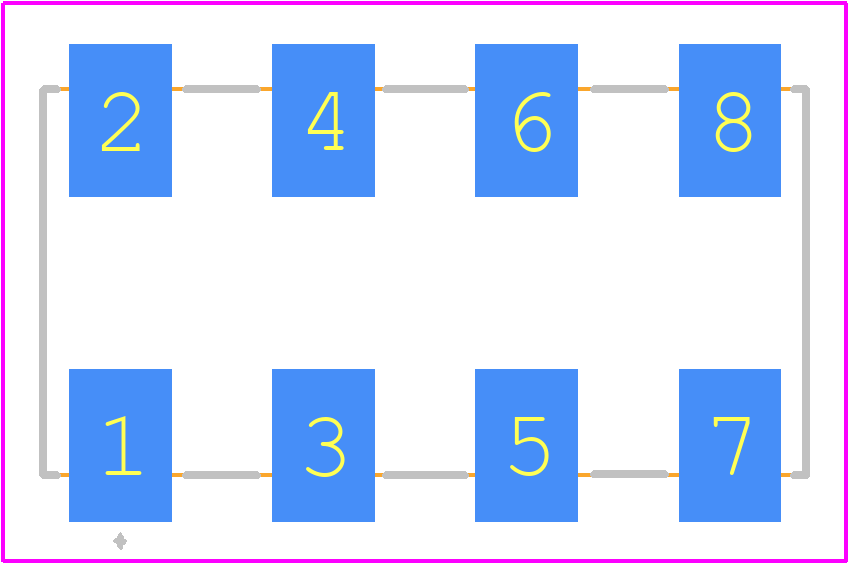

PCB Footprints
SCP-3-1+ - Mini-Circuits PCB footprint - Other - Other - SCP-3-1+-1
click to zoom
3D Models
SCP-3-1+ - Mini-Circuits - 3D model - Other - SCP-3-1+-1
click to zoom

SCP-3-1+ Details

  • Manufacturer Part Number:

    SCP-3-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    15 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    300 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    FL8,.38,200

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.1

SCP-3-1+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The choice of termination resistors depends on the specific application and the impedance of the signal source and load. Mini-Circuits provides guidelines for termination resistor selection in their application notes, and engineers can also consult with their technical support team for assistance.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance may degrade at higher temperatures. Engineers should consult with Mini-Circuits' technical support team for guidance on operating temperature ranges for specific applications.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB layout and shielding techniques, use appropriate filtering and shielding components, and consult with Mini-Circuits' technical support team for guidance on specific application requirements.
  • Mini-Circuits recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling and filtering. Engineers should consult the application notes and technical support team for guidance on specific component selection and placement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCP-3-1+ Overview

Use the download button to access the SCP-3-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCP-3, or try a keyword search, such as RF/Microwave Splitter/Combiners
