SCR410T-K03-10 - Murata Electronics

Description: Gyroscope X (Pitch) ±300 13Hz ~ 300Hz SPI 16-SOIC

Download SCR410T-K03-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

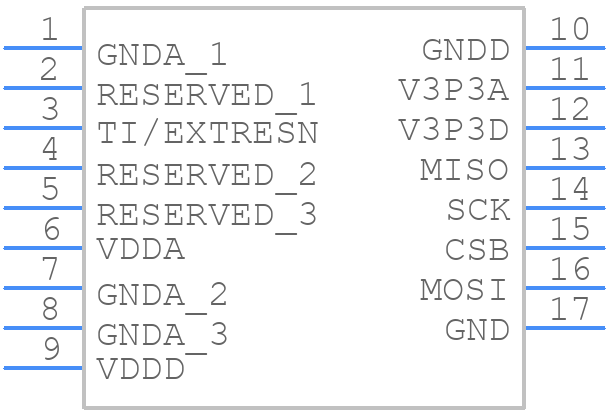

SCR410T-K03-10 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
SCR410T-K03-10 - Murata Electronics PCB footprint - Other - Other - SOIC16-W
click to zoom
3D Models
SCR410T-K03-10 - Murata Electronics - 3D model - Other - SOIC16-W
click to zoom

SCR410T-K03-10 Details

  • Manufacturer Part Number:

    SCR410T-K03-10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    1

  • Body Breadth:

    7.65 mm

  • Body Height:

    2.3 mm

  • Body Length or Diameter:

    10.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    3-STATE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    MEMS

SCR410T-K03-10 Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • The SCR410T-K03-10 has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the junction temperature below 125°C.
  • The SCR410T-K03-10 can operate from -40°C to 125°C, but the maximum junction temperature should not exceed 125°C. Derate the power handling accordingly for higher temperatures.
  • Follow proper storage and handling procedures, avoid excessive mechanical stress, and ensure the device is operated within the recommended specifications. Regularly inspect the device for signs of wear or damage.
  • The SCR410T-K03-10 is designed to withstand moderate vibrations and shocks. However, for extreme environments, consider using additional mechanical support or vibration isolation measures to ensure reliability.
