Please enter a minimum 3 letters or numbers
Technical Content
Part Image

SCS240KE2AHRC - ROHM Semiconductor

Description: Schottky Diodes & Rectifiers 1200V;40A;420W SiC SBD TO-247

Download SCS240KE2AHRC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCS240KE2AHRC - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

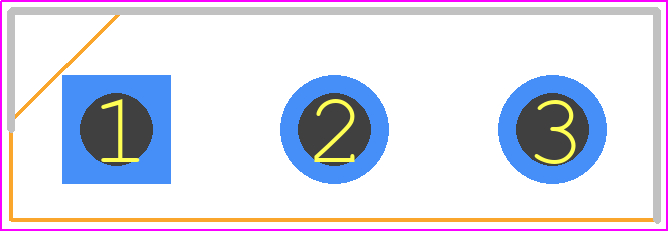

SCS240KE2AHRC - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247_5 TSQ50210_TO-247_Rev1
click to zoom
3D Models
SCS240KE2AHRC - ROHM Semiconductor - 3D model - Transistor Outline, Vertical - TO-247_5 TSQ50210_TO-247_Rev1
click to zoom

SCS240KE2AHRC Details

  • Manufacturer Part Number:

    SCS240KE2AHRC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Date Of Intro:

    2018-10-12

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Application:

    GENERAL PURPOSE

  • Configuration:

    COMMON CATHODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.6 V

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Non-rep Pk Forward Current-Max:

    78 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Dissipation-Max:

    420 W

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    1200 V

  • Reverse Current-Max:

    400 µA

  • Reverse Test Voltage:

    1200 V

  • Surface Mount:

    NO

  • Technology:

    SCHOTTKY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SCS240KE2AHRC Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet for operation above 125°C. Additionally, ensure proper thermal design, and consider using a heat sink or thermal interface material to reduce junction temperature.
  • The maximum allowed voltage on the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage may cause damage to the device.
  • Yes, the SCS240KE2AHRC is rated for operation in humid environments. However, it's essential to follow proper PCB design and assembly guidelines to prevent moisture ingress and ensure reliability.
  • ROHM recommends using a TVS (Transient Voltage Suppressor) or ESD protection diode on the input lines to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCS240KE2AHRC Overview

Use the download button to access the SCS240KE2AHRC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCS24, or try a keyword search, such as Rectifier Diodes

Parts related to SCS240KE2AHRC

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

SCS240KE2AHRC Alternates

Showing results

Image Part Number Model
Part Image SCS240KE2GC11 ROHM Semiconductor

Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 1200V V(RRM), Silicon Carbide, TO-247
