SCT020H120G3AG - STMicroelectronics

Description: Automotive-grade silicon carbide Power MOSFET 1200 V, 18.5 mΩ typ., 100 A in an H²PAK-7 package

Download SCT020H120G3AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

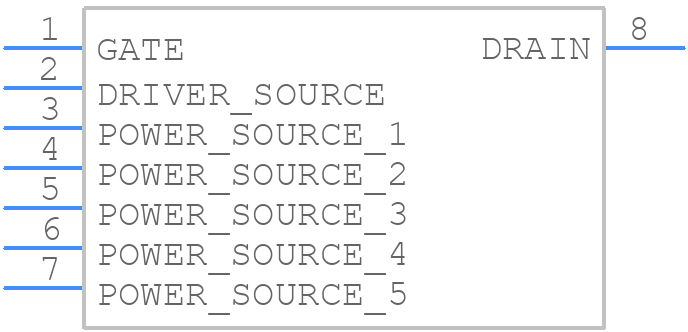

SCT020H120G3AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

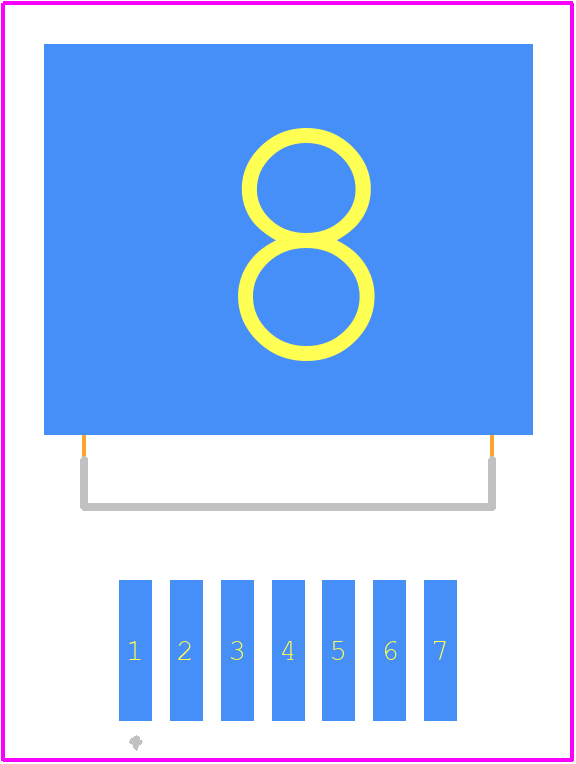

SCT020H120G3AG - STMicroelectronics PCB footprint - Other - Other - H²PAK-7
click to zoom
3D Models
SCT020H120G3AG - STMicroelectronics - 3D model - Other - H²PAK-7
click to zoom

SCT020H120G3AG Details

  • Manufacturer Part Number:

    SCT020H120G3AG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    245

  • Terminal Finish:

    Matte Tin (Sn) - annealed

SCT020H120G3AG Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout and thermal management guidelines.
  • The maximum allowed voltage transient on the input pins is ±500 mV, with a duration of less than 100 ns, to prevent damage to the device.
  • Yes, the SCT020H120G3AG is AEC-Q101 qualified and suitable for high-reliability and automotive applications, but ensure compliance with relevant industry standards and regulations.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals, and check for proper power supply, decoupling, and PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCT020H120G3AG Overview

Use the download button to access the SCT020H120G3AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT02, or try a keyword search, such as Power Field-Effect Transistors
