SCT070HU120G3AG - STMicroelectronics

Description: Automotive-grade silicon carbide Power MOSFET 1200 V, 63 mΩ typ., 30 A in an HU3PAK package

Download SCT070HU120G3AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

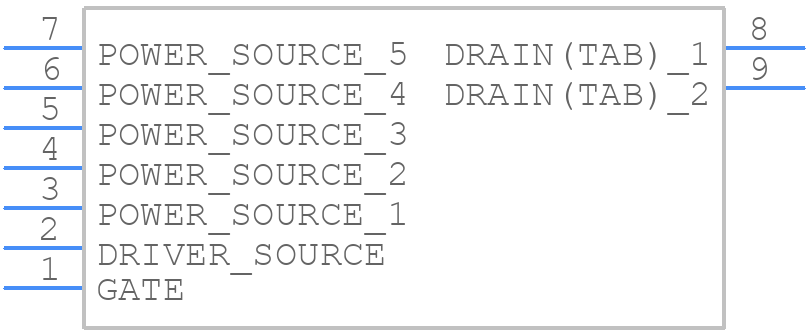

SCT070HU120G3AG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SCT070HU120G3AG - STMicroelectronics PCB footprint - Other - Other - STHU32N65DM6AG-3
click to zoom
3D Models
SCT070HU120G3AG - STMicroelectronics - 3D model - Other - STHU32N65DM6AG-3
click to zoom

SCT070HU120G3AG Details

  • Manufacturer Part Number:

    SCT070HU120G3AG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    40 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SCT070HU120G3AG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The thermal pad should be connected to a large copper area to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's current and voltage ratings at high temperatures.
  • The maximum allowed voltage transient on the input pins is ±20% of the rated voltage for a duration of ≤100ms. Exceeding this may damage the device.
  • Use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures to prevent ESD damage.
  • A soldering profile with a peak temperature of 240°C to 250°C, a dwell time of 30-60 seconds, and a cooling rate of 4°C/s to 6°C/s is recommended.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCT070HU120G3AG Overview

Use the download button to access the SCT070HU120G3AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT07, or try a keyword search, such as Power Field-Effect Transistors
