SCT4036KEHRC11 - ROHM Semiconductor

Description: N-Channel 1200 V 43A (Tc) 176W Through Hole TO-247N

Download SCT4036KEHRC11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

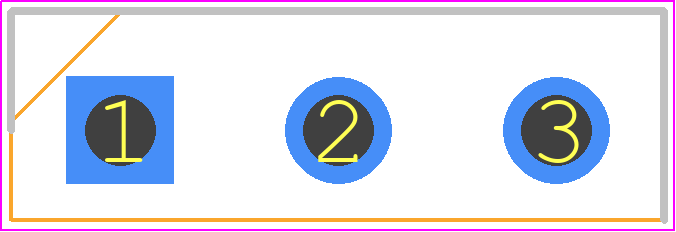

SCT4036KEHRC11 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247N
click to zoom
3D Models
SCT4036KEHRC11 - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - TO-247N
click to zoom

SCT4036KEHRC11 Details

  • Manufacturer Part Number:

    SCT4036KEHRC11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-247N, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    43 A

  • Drain-source On Resistance-Max:

    0.047 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    176 W

  • Pulsed Drain Current-Max (IDM):

    84 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4036KEHRC11 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet for operation above 125°C. Additionally, ensure proper thermal design, and consider using a heat sink or thermal interface material to reduce junction temperature.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the internal ESD protection diodes.
  • Yes, the SCT4036KEHRC11 is suitable for high-frequency switching applications up to 100kHz. However, ensure that the PCB layout is optimized for high-frequency operation, and consider using a gate driver with a low output impedance to minimize switching losses.
  • ROHM recommends following standard ESD handling procedures during PCB assembly, such as using an ESD wrist strap or mat, and storing the devices in an ESD-protected environment.
