SCT4036KW7HRTL - ROHM Semiconductor

Description: Automotive Grade N-channel SiC power MOSFET

Download SCT4036KW7HRTL Model

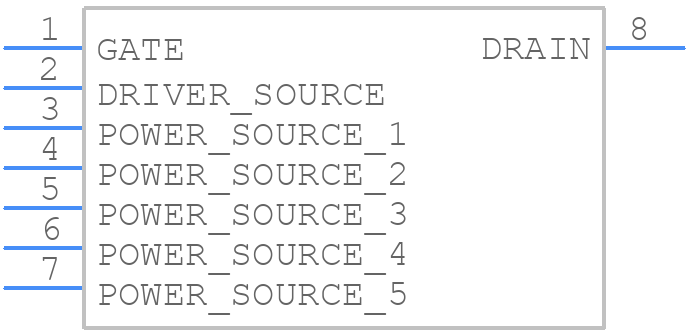

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

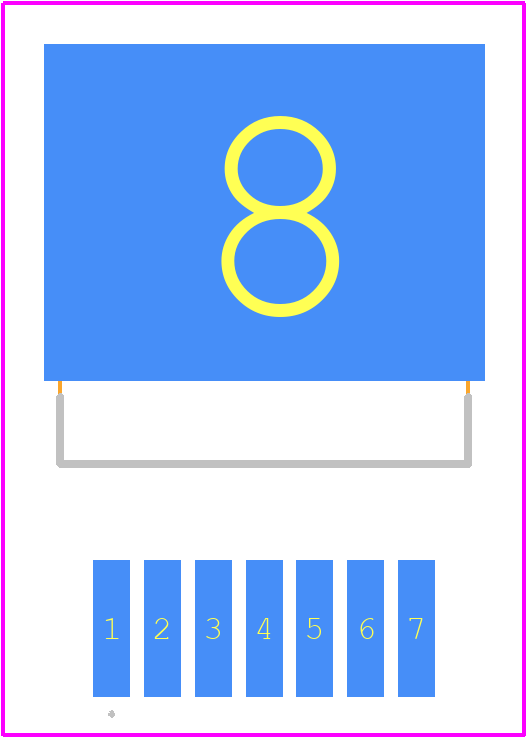

SCT4036KW7HRTL - ROHM Semiconductor PCB footprint - Other - Other - TO-263-7L
click to zoom

SCT4036KW7HRTL Details

  • Manufacturer Part Number:

    SCT4036KW7HRTL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-263-7L, 7 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.047 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    84 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4036KW7HRTL Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating temperature range and derate the device accordingly.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10%.
  • Yes, the SCT4036KW7HRTL is designed to operate in a humid environment. However, it's recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues. Additionally, consider applying a conformal coating to protect the device.
  • ROHM recommends a soldering temperature of 260°C (peak temperature) and a soldering time of 10 seconds or less to prevent damage to the device.
