SCT4045DW7HRTL - ROHM Semiconductor

Description: N-Channel 750 V 31A (Tc) 93W Surface Mount TO-263-7L

Download SCT4045DW7HRTL Model

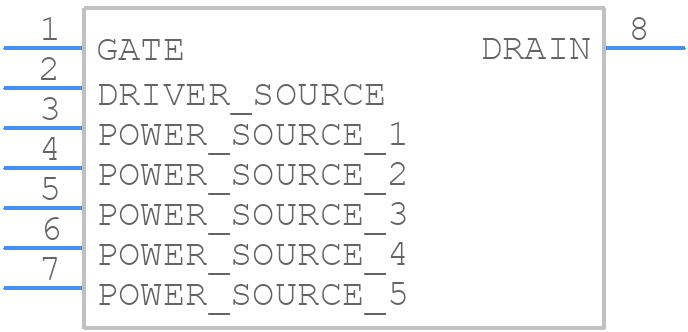

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

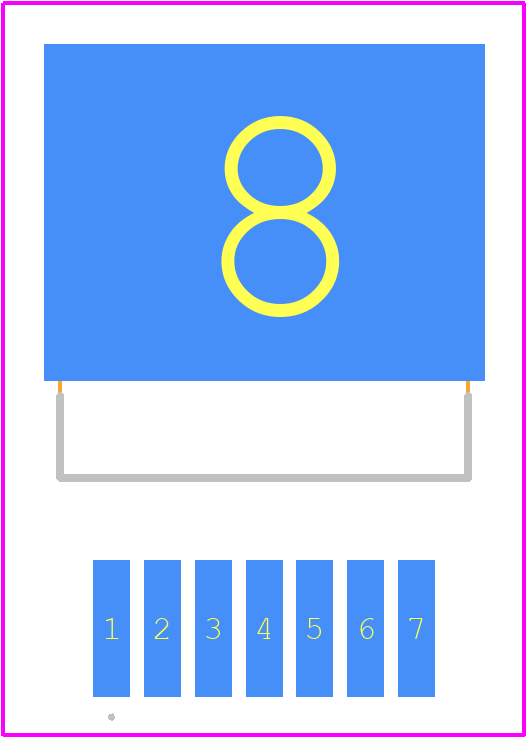

SCT4045DW7HRTL - ROHM Semiconductor PCB footprint - Other - Other - SCT4045DW7HRTL-1
click to zoom

SCT4045DW7HRTL Details

  • Manufacturer Part Number:

    SCT4045DW7HRTL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.8

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    750 V

  • Drain Current-Max (ID):

    31 A

  • Drain-source On Resistance-Max:

    0.059 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5 pF

  • JESD-30 Code:

    R-PSSO-G7

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    61 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4045DW7HRTL Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • The SCT4045DW7HRTL requires a stable voltage supply and proper biasing to operate within its specifications. Ensure the input voltage is within the recommended range (4.5V to 5.5V), and the bias resistors are chosen to set the desired output voltage and current limit.
  • The maximum power dissipation for the SCT4045DW7HRTL is 1.5W. Exceeding this limit can cause the device to overheat, leading to reduced performance, reliability issues, or even failure.
  • Implement overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients or power supply faults. ROHM recommends using a voltage supervisor or a dedicated OVP/UVP IC to ensure the device operates within its specified voltage range.
  • The SCT4045DW7HRTL is rated for operation from -40°C to 125°C. Operating the device outside this range can affect its performance, reliability, and lifespan.
