SCT4045DW7TL - ROHM Semiconductor

Description: 750V, 45mΩ, 7-pin SMD, Trench-structure, Silicon-carbide(SiC) power MOSFET

Download SCT4045DW7TL Model

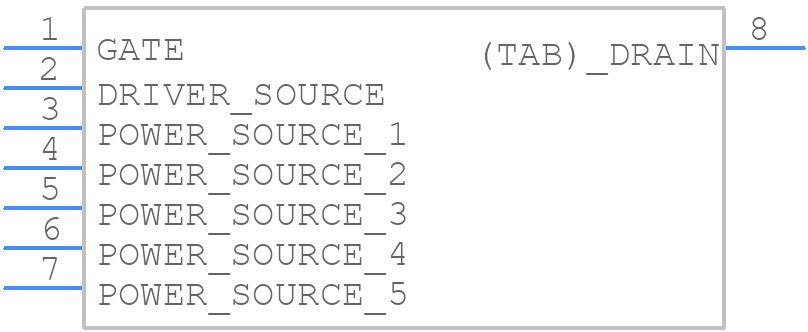

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

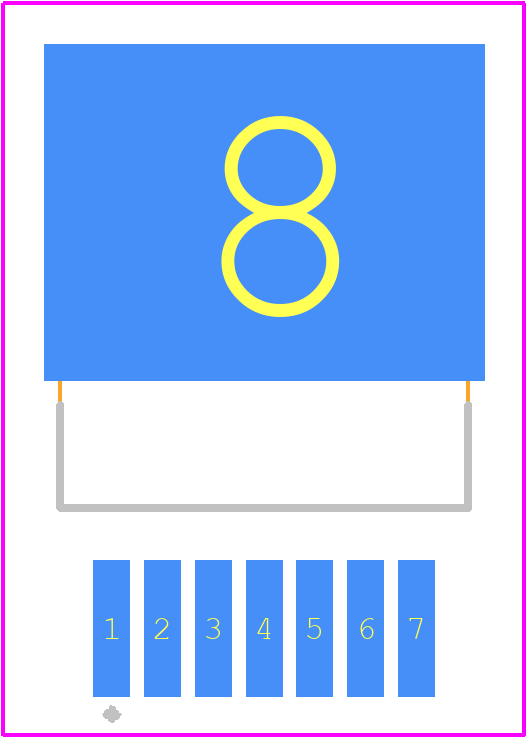

SCT4045DW7TL - ROHM Semiconductor PCB footprint - Other - Other - TO-263-7L_Nominal_Height
click to zoom
3D Models
SCT4045DW7TL - ROHM Semiconductor  - 3D model - Other - TO-263-7L_Nominal_Height
click to zoom

SCT4045DW7TL Details

  • Manufacturer Part Number:

    SCT4045DW7TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.8

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    750 V

  • Drain Current-Max (ID):

    31 A

  • Drain-source On Resistance-Max:

    0.059 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    5 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    93 W

  • Pulsed Drain Current-Max (IDM):

    61 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

SCT4045DW7TL Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the device's power rating at high temperatures.
  • The maximum allowed voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the device.
  • Yes, the SCT4045DW7TL is suitable for high-frequency switching applications up to 100kHz. However, ensure that the device is properly snubbed and the PCB layout is optimized for high-frequency operation.
  • ROHM recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage.
