ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating guidelines for the device. ROHM provides a derating curve in the datasheet, which shows the maximum allowed power dissipation at different temperatures. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material if necessary.
The SCT4062KW7HRTL has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. ROHM recommends using an ESD wrist strap or mat during handling, and ensuring that the device is stored in an ESD-protected environment.
Yes, the SCT4062KW7HRTL is suitable for high-reliability and automotive applications. ROHM provides a range of reliability and quality certifications, including AEC-Q101, which ensures the device meets the stringent requirements of the automotive industry.
ROHM recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. The device is compatible with lead-free soldering, and ROHM provides a recommended soldering profile in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCT4062KW7HRTL Overview

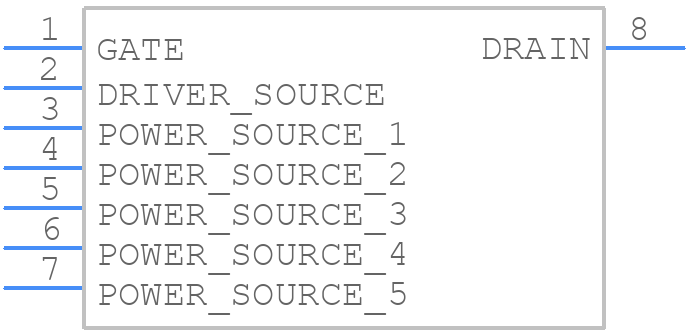

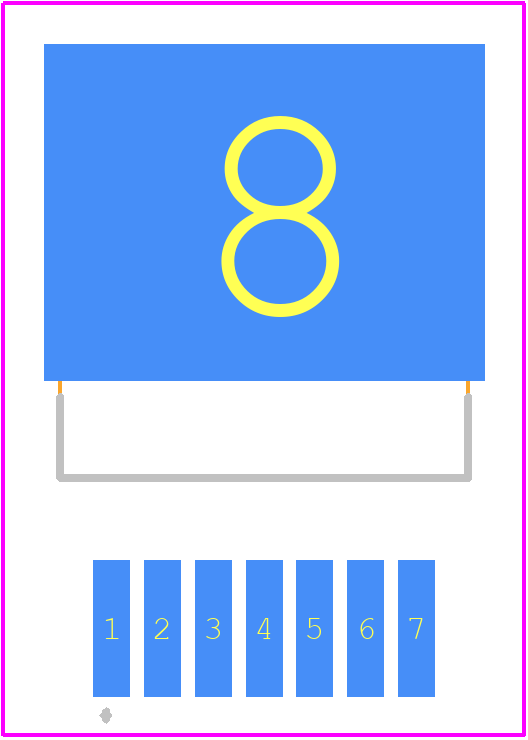

Use the download button to access the SCT4062KW7HRTL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCT40,
or try a keyword search, such as Power Field-Effect Transistors
